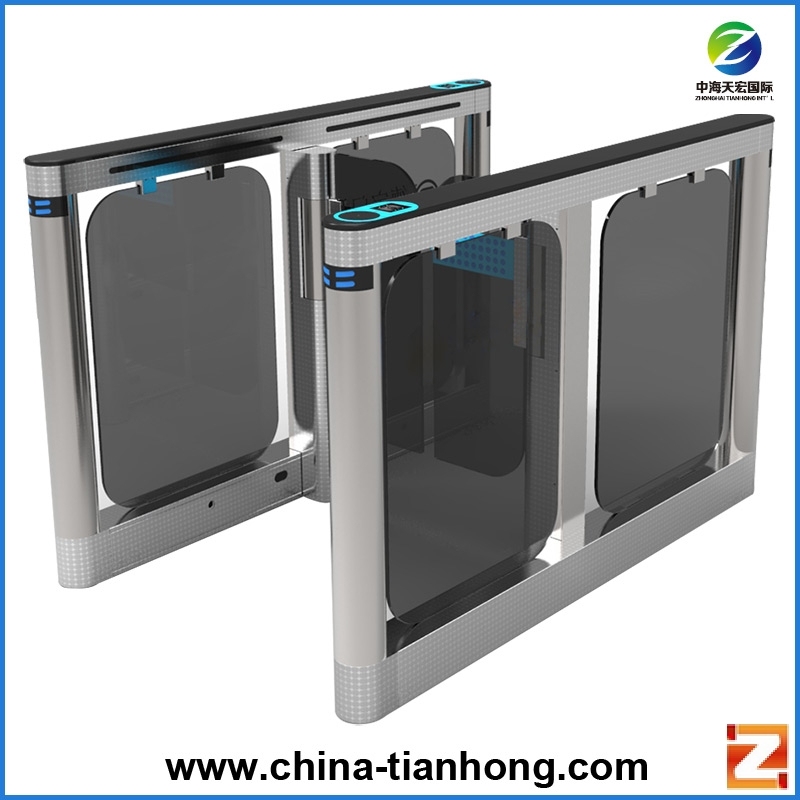

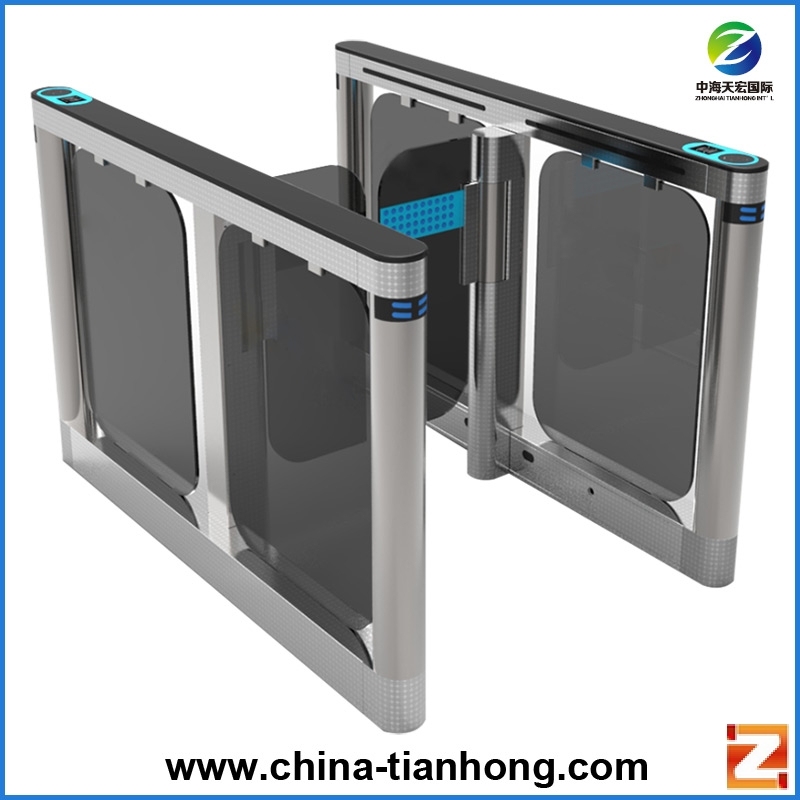

Super Slim High Speed Gate SG138

Item No.: TH-SG138
Be applied to pedestrian passageway and automatic fare collection management such as government, enterprises and office building.
INQUIRY
Description

Tianhong Speed Gate Turnstile provides an efficient and reliable way to ensure that only authorized people are allowed to access each area of a building. This is a high-speed gate turnstile that is capable of handling high volume access and abusive conditions.

The super slim high speed gate turnstile  comes with a standard electric interface that can easily integrate the common 3rd party access control system, such as bar-code scanner, Token coin collector, time & attendance system, card collector, biometrcis systems (fingerprint & face recognition), ESD system and fare collection system, etc. It’s one of the most common security turnstiles.

Tianhong provide both ODM & OEM services as per the customers' demands.
For product pricing, designing or any other inquiries, please feel free to contact us.



Technical Parameters
1. Configuration: Mechanism, Housing, Control board, Power supply
2. Power Consumption:Static state: single core 60W; dynamic state: single core 160W.
3. Power Input:AC220V±10%,50HZ
4. Output:DC5V、DC12V、AC24V
5. Drive Mode:DC electric motor
6. Interface:one Rs 232 interface, two card reader signals (passive), one fire alarm interface.
7. Overall Dimension:1500L x 185W x 1020H (mm)
8. Following Speed:35 people/minute in normal mode, 50 people/minute in fast mode
9. Service Life: Five millions continuous rotation
10.Operation Direction:Single/bi-directional
11.Working Environment:Indoor
12.Lane Width:500mm-550mm
13.Opening Angle:90±5°
14.Noise:≤50dB
15.Opening and Closing time:1 second
16.Net Weight: Single core 70 KGS/set; doub
le cores 100 KGS/set
