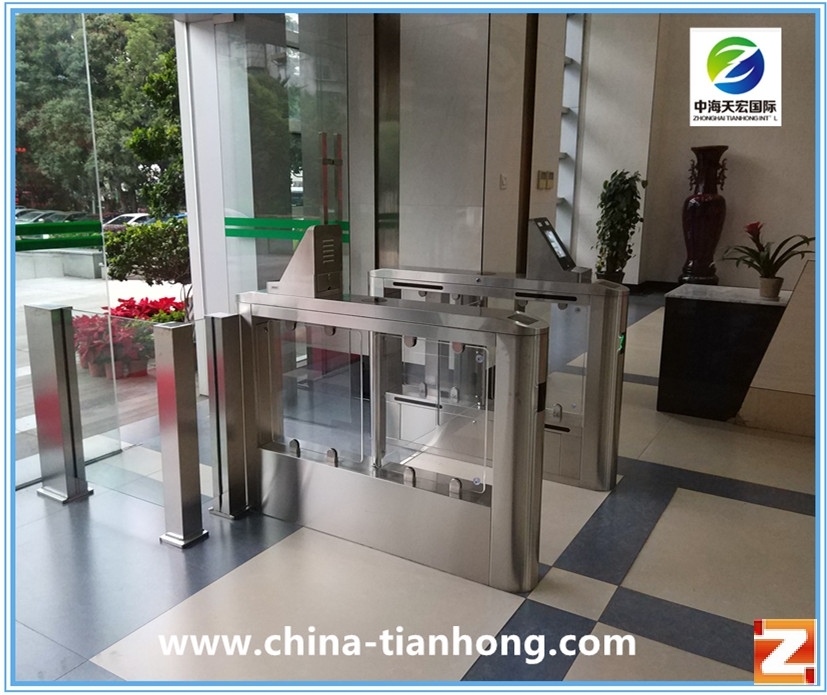

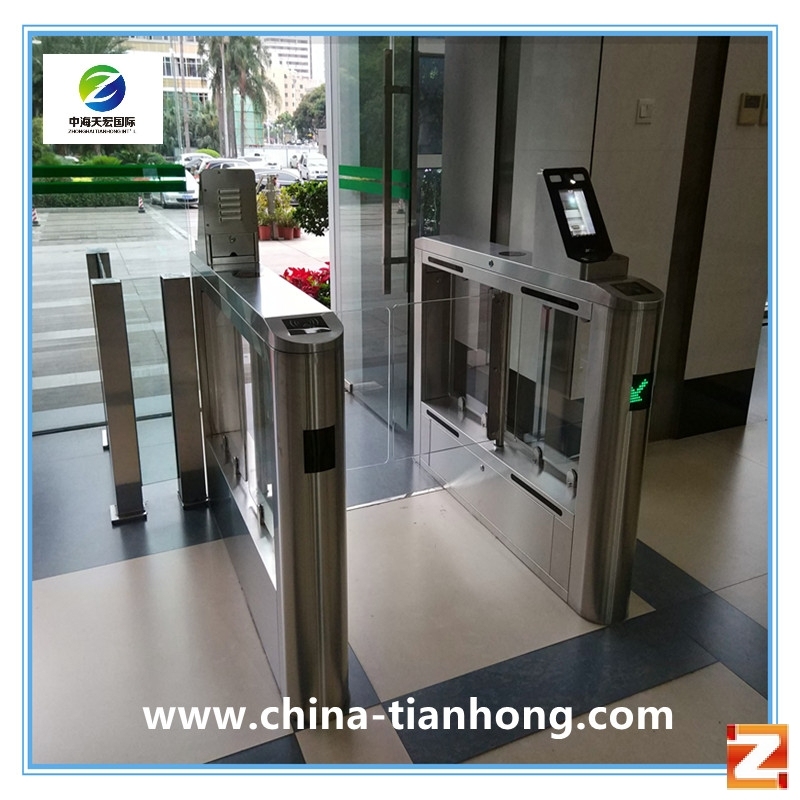

Optical Fast Speed Face Control Speed Gate Turnstile

Item No.: TH-SG308
This is our latest speed gate with face recognition. It is widely used nowadays in the deluxe office buildings of banks, government offices, security departments, hospitals, schools.

Face RecognitionTurnstile is a kind of intelligent pedestrian turnstile gate that integrates with a biometric face recognition scanner or reader in order to realize the security management of the pedestrian access control through face recognition verification. Of course, We can integrate these biometric face recognition scanners or readers into our turnstile gate easily. We also provide biometric devices, such as IC/ID card reader, fingerprint scanner, QR code scanner, face recognition camera, and so on.

TIANHONG can customize face recognition turnstile Speed Gate according to your requirements. If you need to integrate these devices on the turnstile gate or have any questions, If you need these face recognition turnstiles, please feel free to inquiry us .


The face recognition  biometric method is to identify the biometrics of the passing people, and its reliability is relatively high. Compared with RFID card / QR code identification, it saves the trouble of carrying these external media. But face recognition is easy to collect and is more likely to be camouflaged, so there are certain vulnerabilities. Moreover, the passage needs the active cooperation of pedestrians to verify.

Technical Parameters

1. Configuration: Mechanism, Housing, Control board, Power supply
2. Power Consumption: Static state: single core 60W; dynamic state: single core 160W.
3. Power Input:AC220V±10%,50HZ
4. Output:DC5V、DC12V、AC24V
5. Drive Mode: DC electric motor
6. Interface: one Rs 232 interface, two card reader signals (Passive), one fire alarm interface.
7. Overall Dimension: 1500L x 185W x 1020H (mm)
8. Following Speed: 35 people/minute in normal mode, 50 people/minute in fast mode
9. Service Life: Five millions continuous rotation
10. Operation Direction: Single/bi-directional
11. Working Environment: Indoor
12. Lane Width: 500mm-550mm
13. Opening angle:90±5°
14. Noise:≤50dB
15. Opening and Closing Time: 1 second
16. Net Weight: Single core 70 KGS/set; double cores 100 KGS/set
