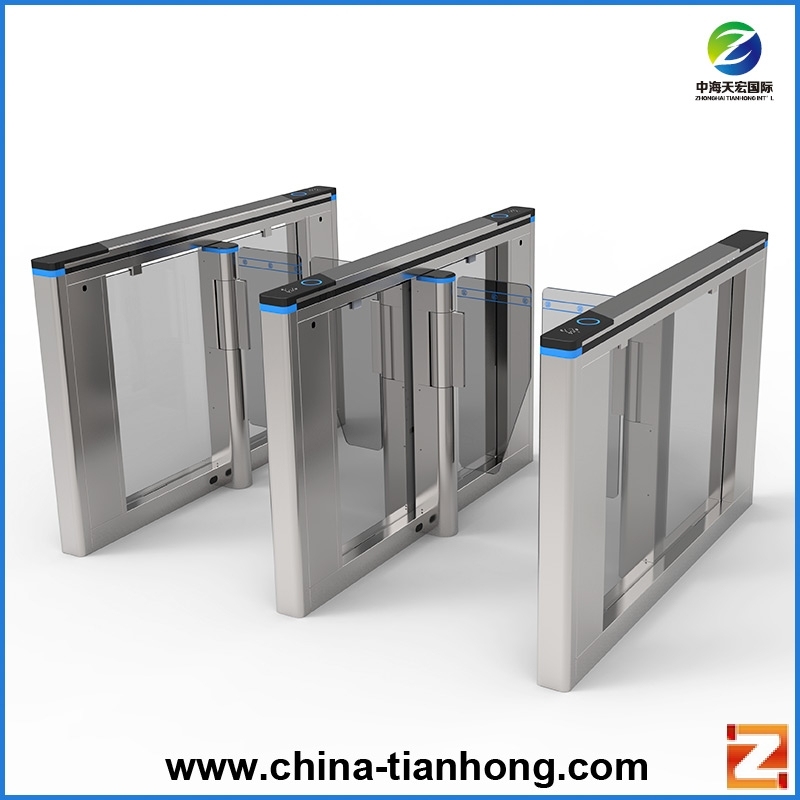

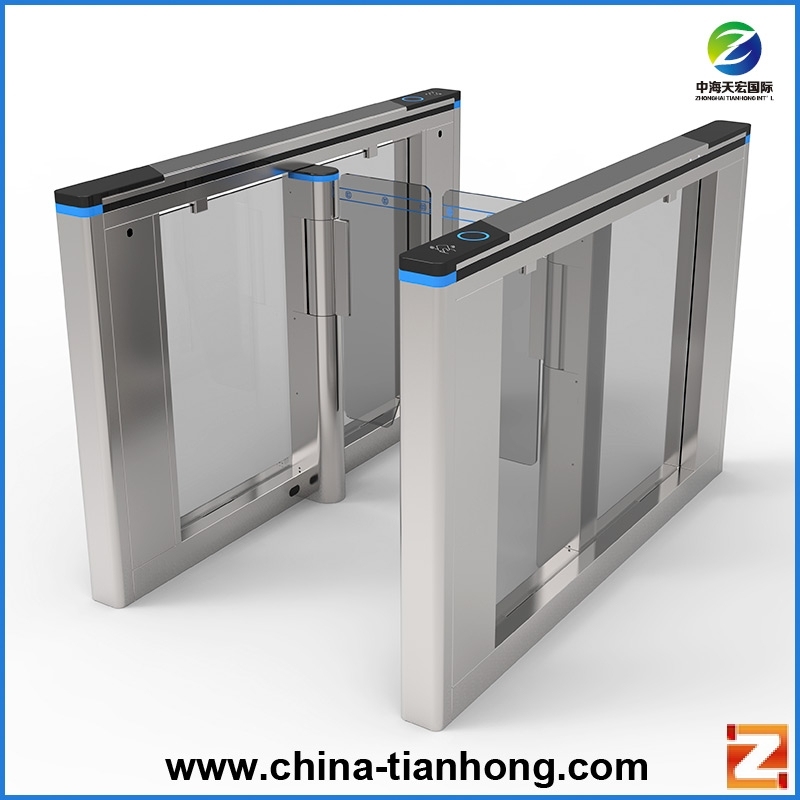

Speed Gate SG328-2

Item No.: TH-SG328-2
Be applied to pedestrian passageway and automatic fare collection management such as government, enterprises and office building.
INQUIRY
Description

Speed gate is developed for high-end users, with safe and efficient, intelligent use, high-quality, sturdy and durable. It collect industry experience and wisdom of all employees in one for many years, providing users with a complete product solution and quickly create high-quality channel products. We adhere to the customer as the center, we adhere carefully to provide users with high-quality products.



Swing gate turnstile has standard electrical interface which can be connected with ID cards, IC cards, magnetic cards, barcode cards etc. The integration system ensures passing in order and will never allow unauthorized persons to go in or go out.

Tianhong provide both ODM & OEM services as per the customers' demands.
For product pricing, designing or any other inquiries, please feel free to contact



Technical Parameters
1. Configuration: Mechanism, Housing, Control board, Power supply
2. Power Consumption:Static state: single core 60W; dynamic state: single core 160W.
3. Power Input:AC220V±10%,50HZ
4. Output:DC5V、DC12V、AC24V
5. Drive Mode:DC electric motor
6. Interface:one Rs 232 interface, two card reader signals (passive), one fire alarm interface.
7. Overall Dimension:1500L x 185W x 1020H (mm)
8. Following Speed:35 people/minute in normal mode, 50 people/minute in fast mode
9. Service Life: Five millions continuous rotation
10.Operation Direction:Single/bi-directional
11.Working Environment:Indoor
12.Lane Width:500mm-550mm
13.Opening Angle:90±5°
14.Noise:≤50dB
15.Opening and Closing time:1 second
16.Net Weight: Single core 70 KGS/set; double cores 100 KGS/set
