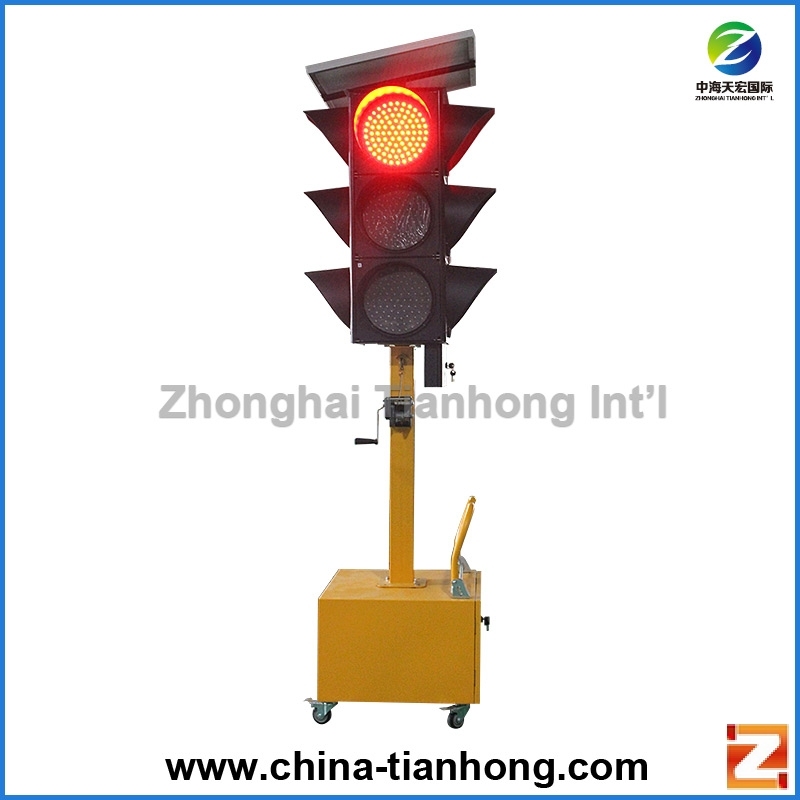

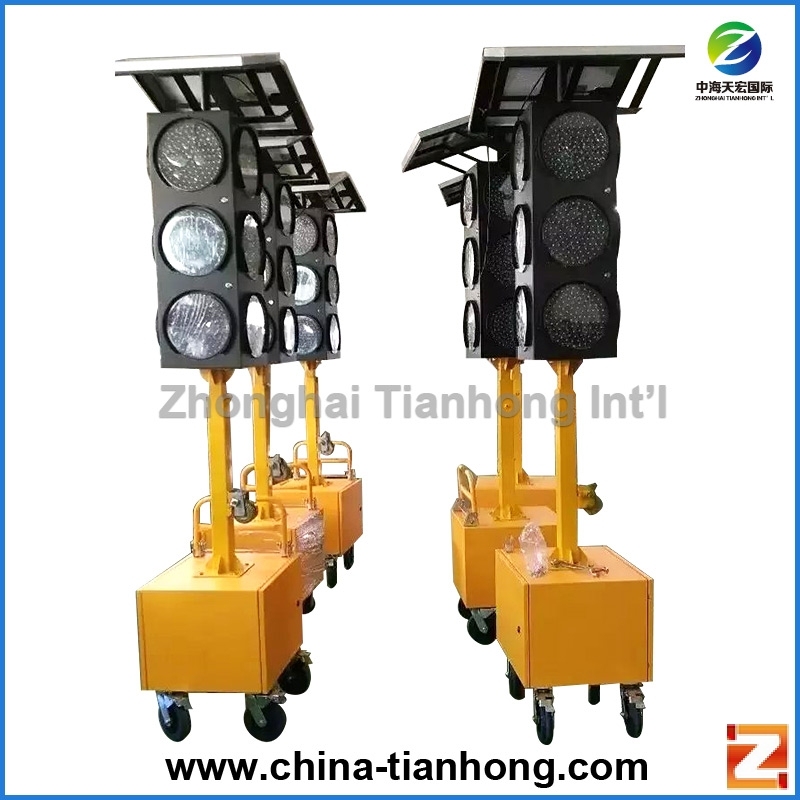

Mobile Solar Traffic Light TH-MTL109

Item No.: TH-MTL109
 Energy saving, long service life
 strong adaptability to the environment
 short switching times of different colors
 LED patch surface emission, high visibility
 reasonable structure, beautiful appearance
 strong protective properties (waterp

The Mobile Solar Traffic Light is a versatile and sustainable solution designed to enhance road safety and traffic management. This compact and portable traffic control system integrates solar power technology, providing an environmentally friendly and energy-efficient alternative to traditional traffic lights.

Powered by solar panels, these lights operate independently of the electrical grid, making them ideal for remote or temporary locations without access to power sources. The mobile design allows for easy deployment in construction zones, events, or emergency situations where temporary traffic control is required.

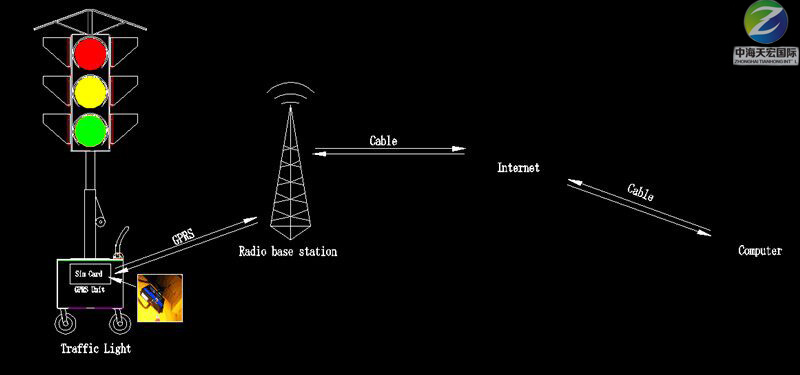

Equipped with LED lights, the Mobile Solar Traffic Light ensures high visibility and energy efficiency. These lights often feature programmable sequencing, allowing for customized traffic control patterns to suit specific road conditions or events. Additionally, some models may incorporate wireless communication capabilities for centralized monitoring and control.

The combination of solar power, portability, and intelligent features makes the Mobile Solar Traffic Light a reliable and sustainable solution for temporary traffic management, contributing to safer roads while minimizing environmental impact.

Mobile red and green signal light is a kind of mobile, adjustable solar emergency traffic light, using solar power supply, auxiliary charging, light source using LED energy-saving light-emitting diode, control using microcomputer IC chip, can control the road.

1.There is no cable connection between each group of lights, that is, there is no need to break the road or overhead line, the installation is very simple, save time, save labor and save cost, easy maintenance;

2.By solar energy, battery power supply, no need to supply electricity, energy saving, has good social benefits.

3.In continuous cloudy and rainy days can also work continuously for 5 to 7 days, such as correct installation, 365 days a year non-stop work;

4.The controller has the features of high reliability, simple operation interface, complete functions, multiple phases, multiple schemes, multiple periods, manual and so on.

Technical Parameters

« Working Temperature:-25℃~+60℃

« Humidity Range:-20%~+95%

« Working Voltage:constant current

« LED MTBF: ≥10000hours

« Outside Material: cold rolled plate

« Size(mm):500*600*3000

« IP rate:IP65

« MTBF: ≥10000hours

« Wind Resistance: 40m/s

« Solar Panel Maximum Output Power: 80W

« Solar peak current: 4.2A

« Solar Panel Output Voltage: 18V

« Pole MTBF: ≥10years

« Lead-acid battery capacity: 100AH/12V

« Battery MTBF: ≥2years

« Working Mode: continuous work,  Working Voltage: 12V


Housing Structure of 2mm thick galvanized cold rolling plate, the high precision CNC machining, To ensure high strength, accuracy, smoothness and reliability requirement, and electrostatic spray processing technology
