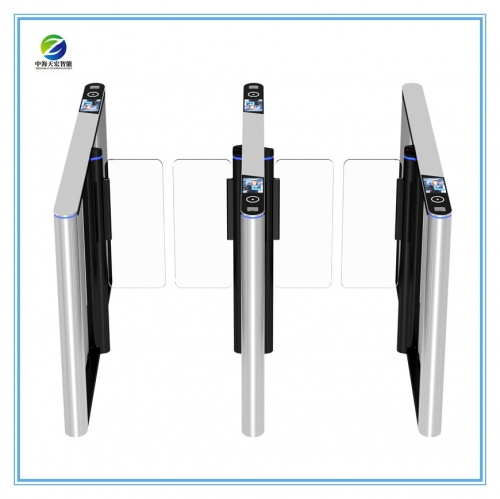

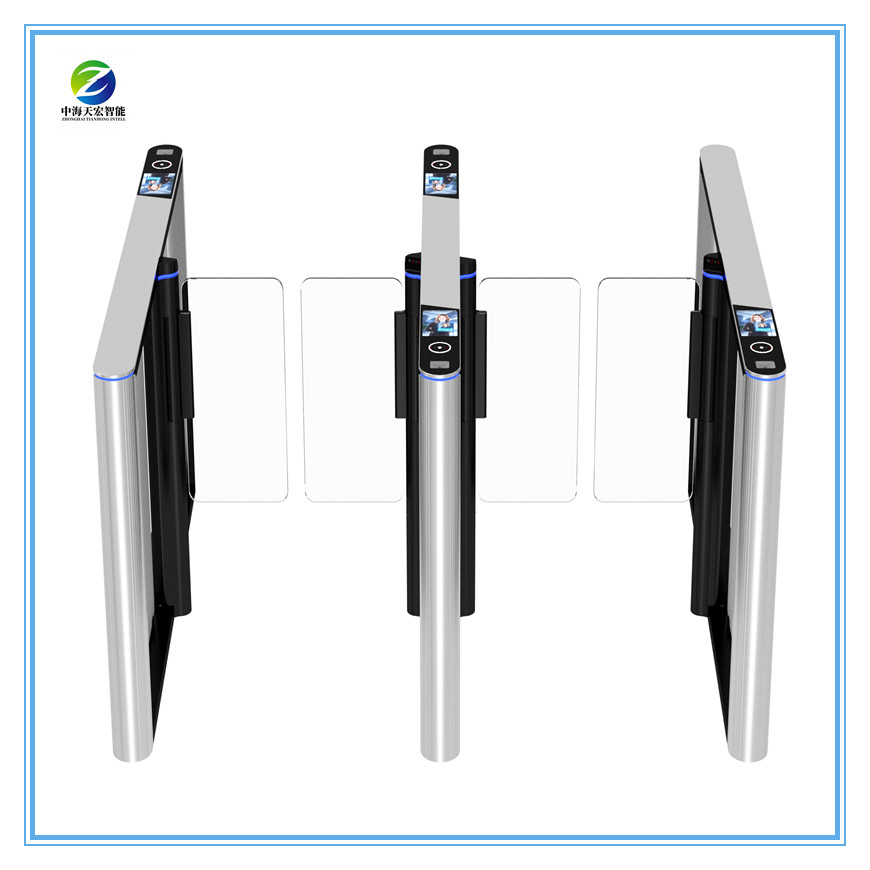

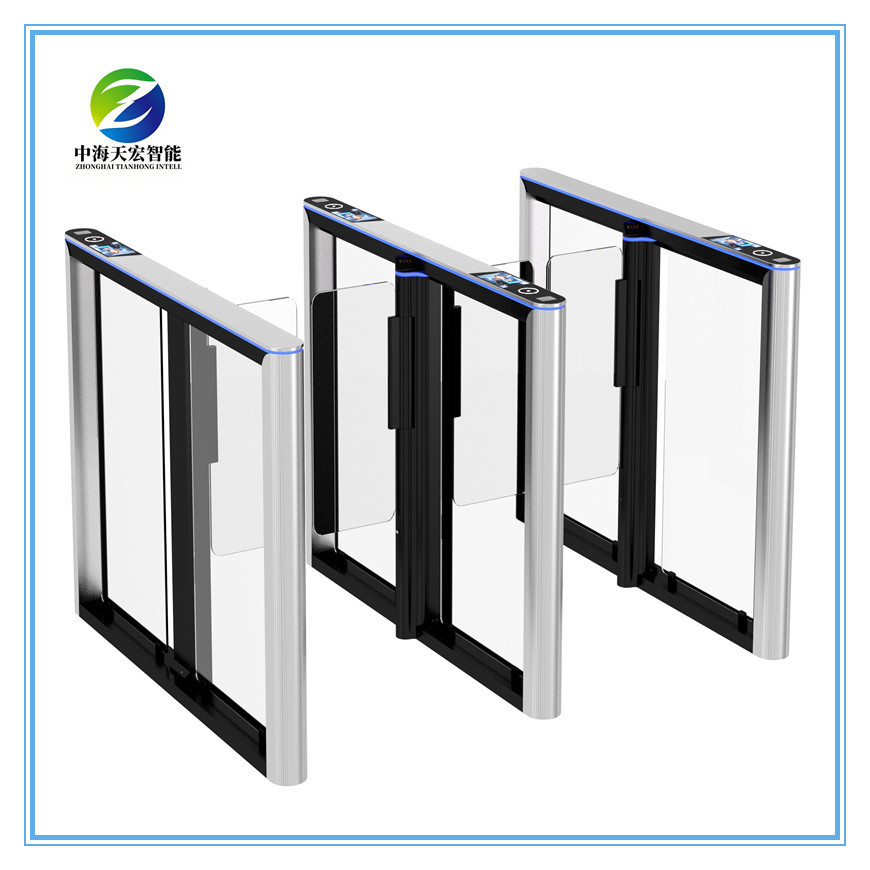

Super Slim Speed Gate with Palmprint Face Recogintion RFID Card Controller
Item No.: TH-SG478
SG478 Ultra-Slim Speed Gate integrates palm vein, facial recognition, and RFID control in one sleek unit, delivering high-security access with rapid throughput for modern, high-traffic environments.
Description
The SG478, developed by Zhonghai Tianhong, is a next-generation, ultra-slim speed gate engineered for high-security and high-traffic environments. It integrates three distinct authentication modalities—palm vein recognition, facial recognition, and RFID card reading—into a single, elegant, and compact unit. This advanced integration represents the forefront of access control technology.
Core Technology & Advantages

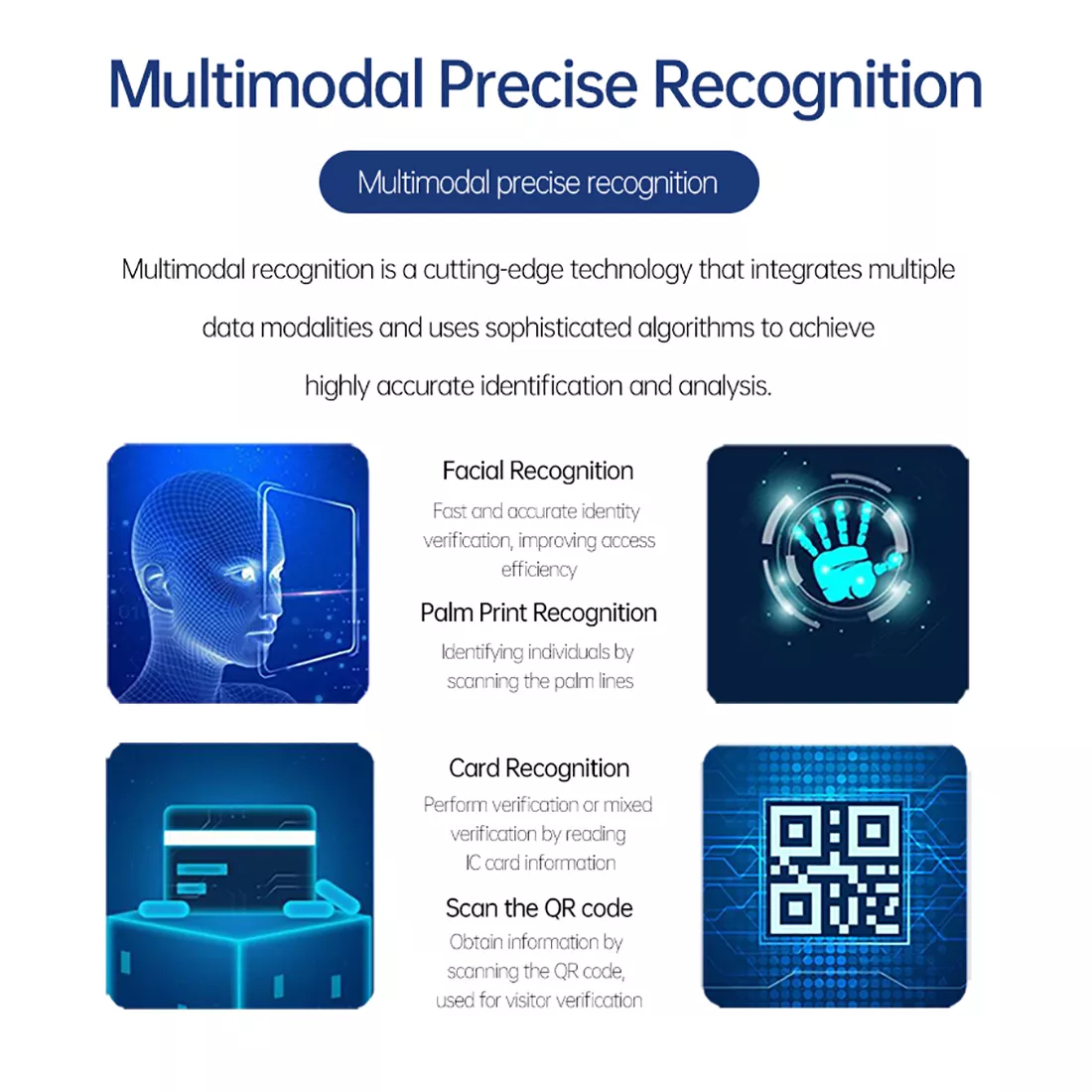

The system’s strength lies in its multi-modal architecture:

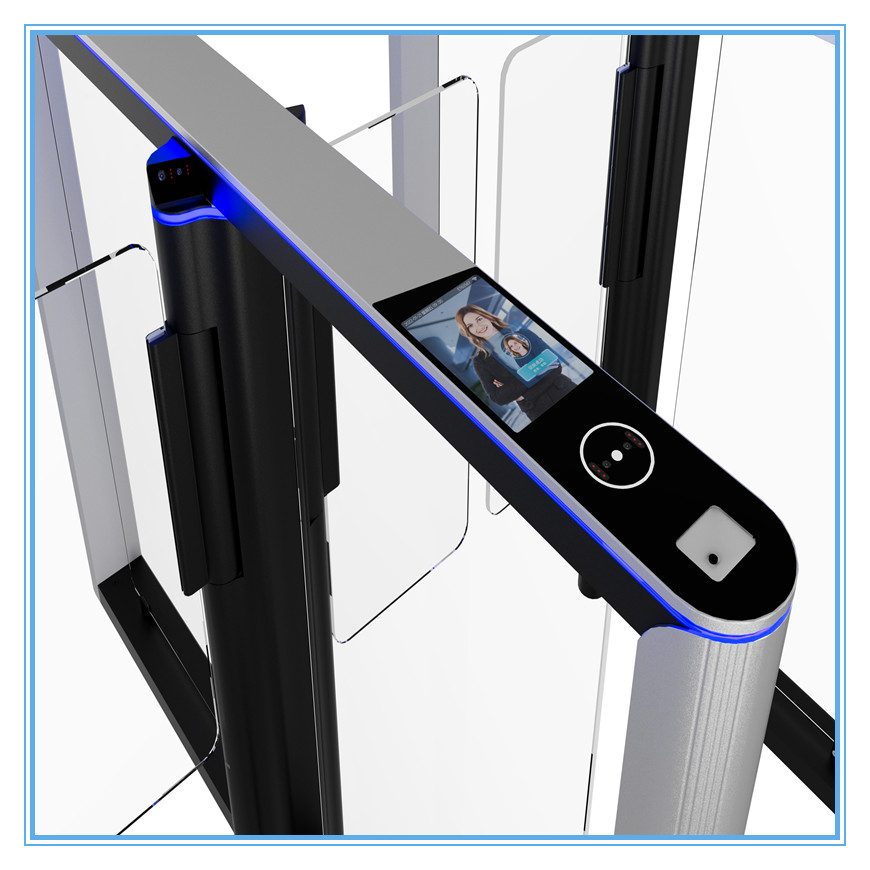

Palm Vein Recognition: Leveraging near-infrared technology to capture subdermal vein patterns, this method offers inherent advantages in security and hygiene. It is a form of active, liveness-detected biometrics, meaning users must willingly present their palm, significantly enhancing anti-spoofing security compared to passive facial capture. As an internal biometric trait, it is nearly impossible to forge or replicate, and is unaffected by surface conditions like dry skin or minor injuries.
Facial Recognition: Utilizes advanced AI algorithms for rapid, non-contact identity verification, supporting liveness detection to prevent photo or video spoofing.
RFID Card Controller: Provides a reliable and familiar physical credential option for flexibility in user management and access policies.
The primary advantage of combining these technologies is creating a defense-in-depth security model. A user can be verified by a single factor for speed or by multiple factors in tandem for the highest security zones (e.g., requiring both a valid card and a biometric match). This fusion directly addresses vulnerabilities in single-factor systems, such as lost cards or spoofed fingerprints.
System Performance & Application
Engineered for efficiency, the SG478 is designed to process authentications in under one second, facilitating rapid pedestrian flow during peak hours. Its super-slim profile and modern design make it ideal for corporate headquarters, financial institutions, data centers, and major transportation hubs where aesthetics and space-saving are priorities. The system supports seamless software integration for centralized management, offering functions like real-time status monitoring, detailed access logs, and dynamic permission assignment based on user roles or time schedules.
Main Technical Parameters
Measurement 1500(L)*110(W)*990(H)mm
RAM+ROM 2+8G

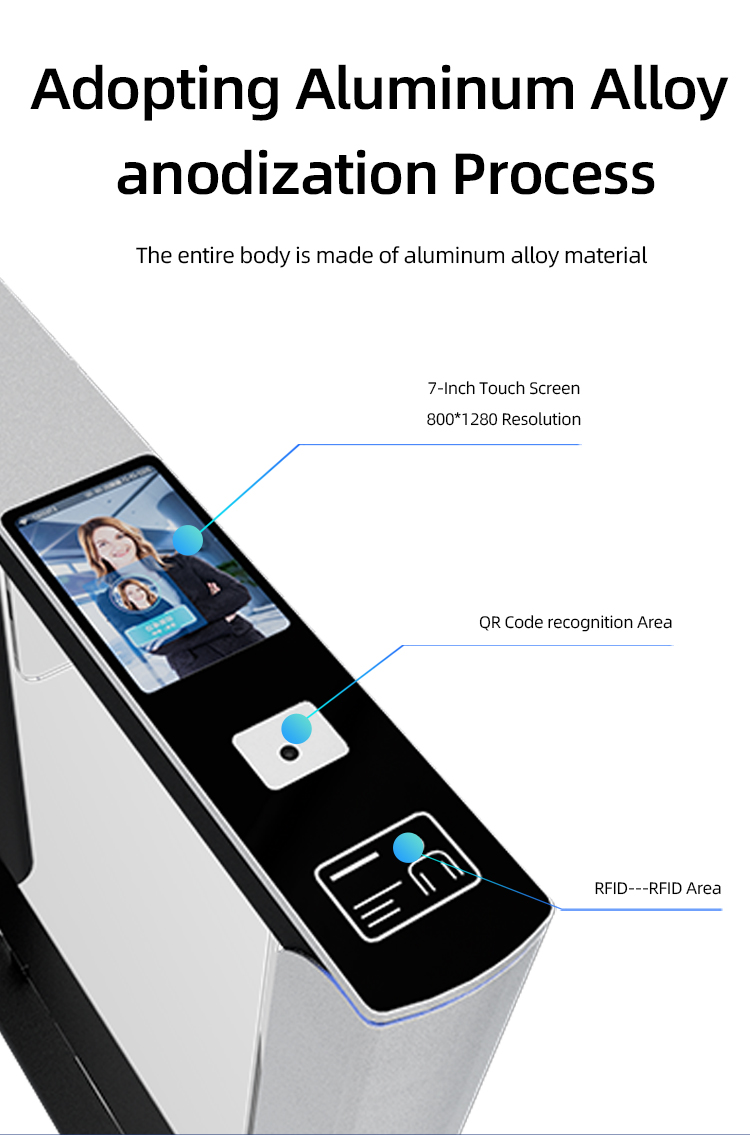

LCD 7-inch, 800*1280
Camera Binocular 200 Megapixel, Wide-dynamic
Passing Efficiency 50 person/min

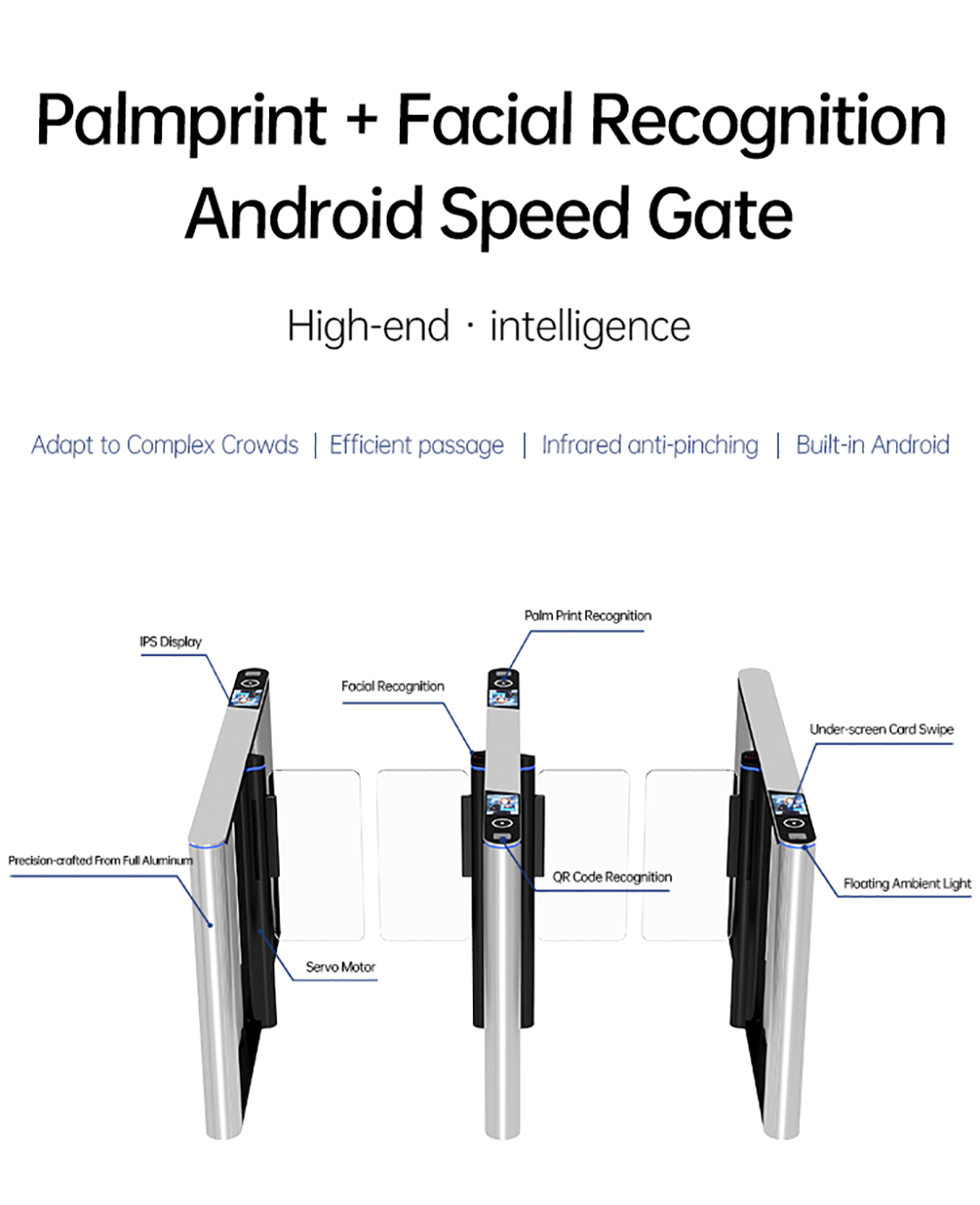

Drive Motor Servo Motor
Passage Width 600-900mm (Customizable)

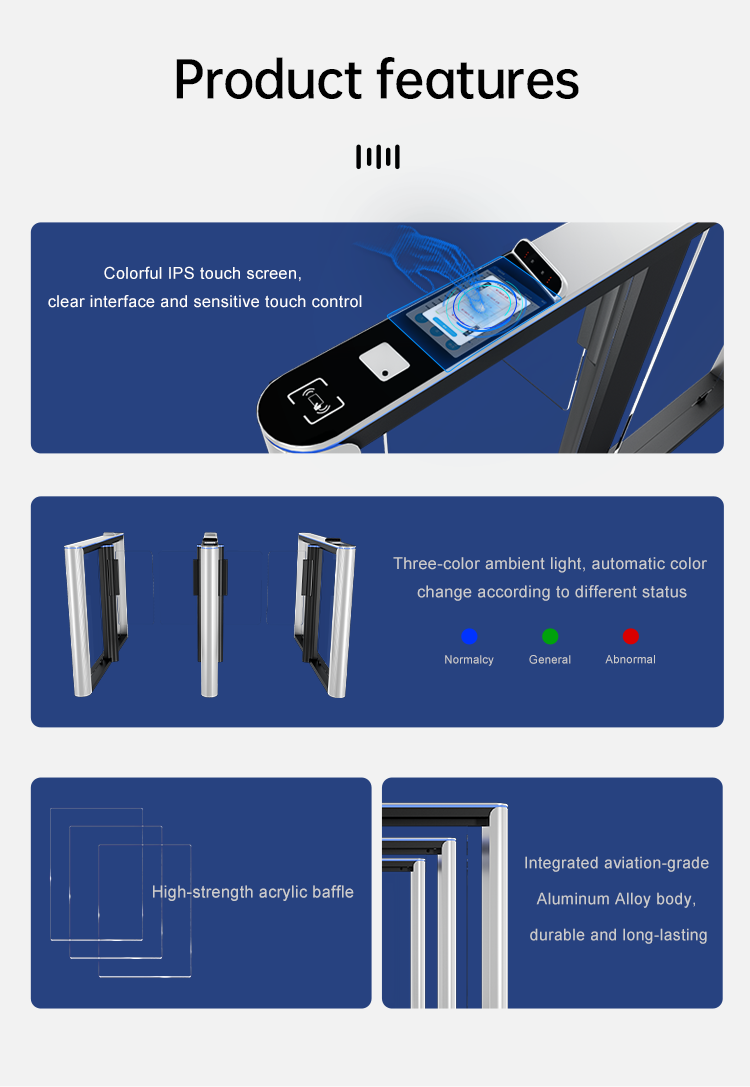

Post Material Aircraft-grade Aluminum Alloy
Baffle Material 8mm Toughened Glass
Swing Door Material 10mm Acrylic /Toughened Glass
Door Opening Speed <0.2s
Audio 30,000 Stereo Speakers
Infrared Senor 6 Pairs
Voltage Input AC220V, Working Voltage DC24V
Ethernet Support
WIFI Support
Accuracy 99.98%
Recognition Speed 200~300ms
Operation System Android
