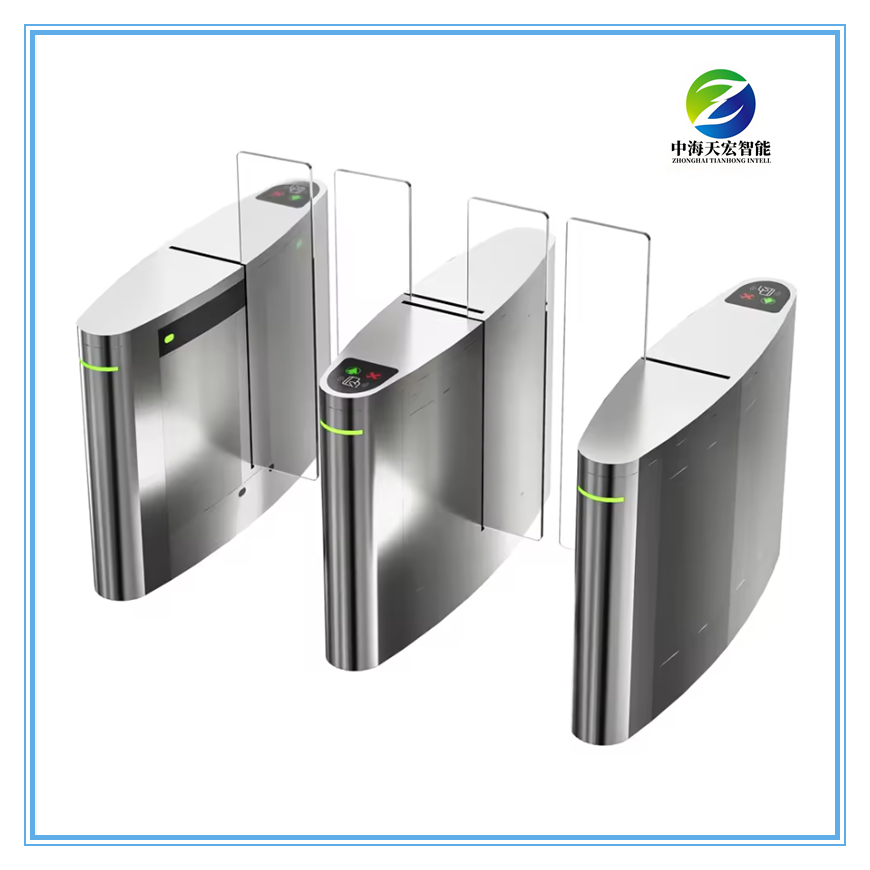

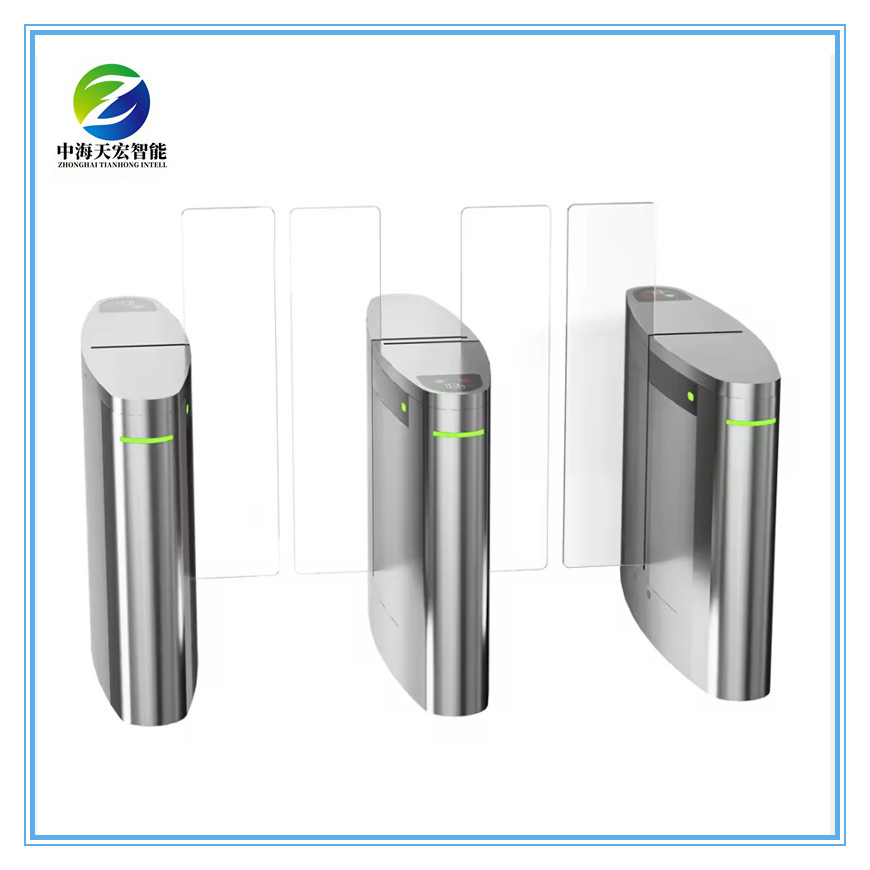

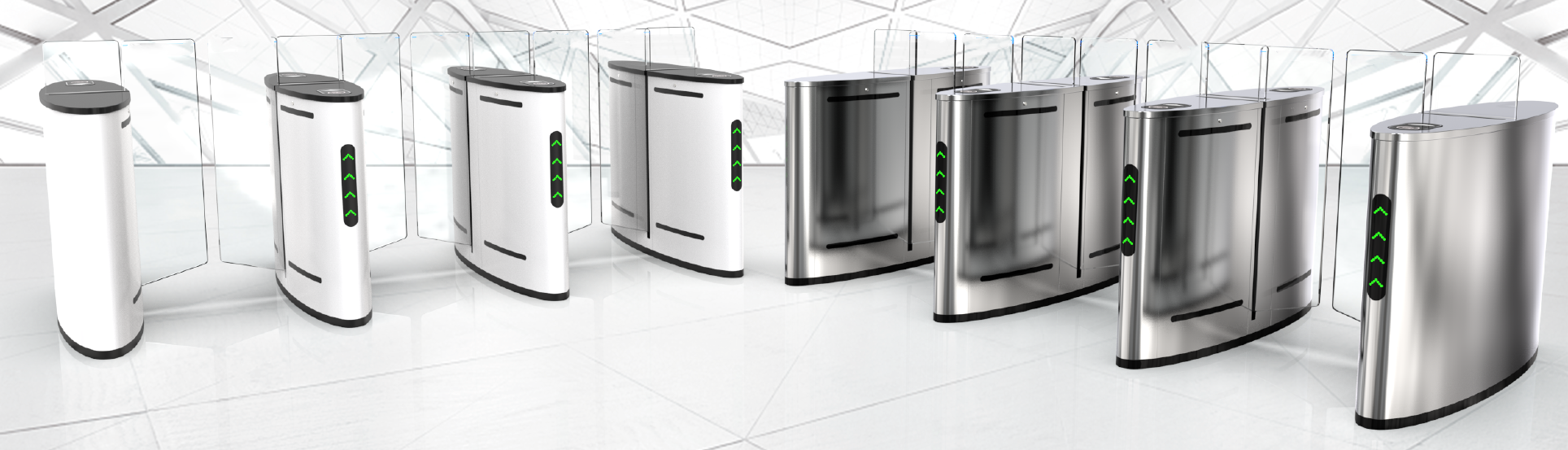

Pedestrian Sliding Gate Turnstile

The Zhonghai Tianhong Pedestrian Sliding Gate Turnstile FSG628 is a state-of-the-art, full-height sliding gate turnstile engineered for ultimate perimeter security and sophisticated pedestrian access control. Designed primarily for high-risk environments, its robust construction and imposing physical barrier effectively deter unauthorized entry and tailgating.

This model operates on a smooth, motorized sliding mechanism, ensuring reliable and rapid open-close cycles for efficient pedestrian traffic flow. The full-height design, often complemented by reinforced polycarbonate or stainless-steel panels, provides both high security and clear visibility. It is ideally suited for critical infrastructure sites, such as airports, power plants, data centers, and correctional facilities.

The FSG628 seamlessly integrates with a wide range of access control systems, including card readers, biometric scanners, and facial recognition technology. Its intelligent control board allows for customizable operation modes and real-time monitoring. Built with durability in mind, it features all-weather resistance for reliable performance in various outdoor and indoor conditions. The Zhonghai Tianhong FSG628 represents a perfect synergy of physical deterrence, intelligent access management, and robust engineering, making it a premier choice for securing sensitive perimeters.

Technical Parameters


1.  Size: 1400 * 350 * 1000 mm (can be customized)

2. Lane width: 600 mm (can be customized)

3. Passing speed: 40 person/min

4. Power supply: 110 V/220 V 50/60 Hz

5. Driving Motor: 30 W/40 W

6. Gate Open Signal: Dry Contact/ Relay

7. Driving Motor: DC24V

8. Flap barrier turnstiles Weight: 70 kg/pcs

9. Arm height: 1200 mm (can be customized)
