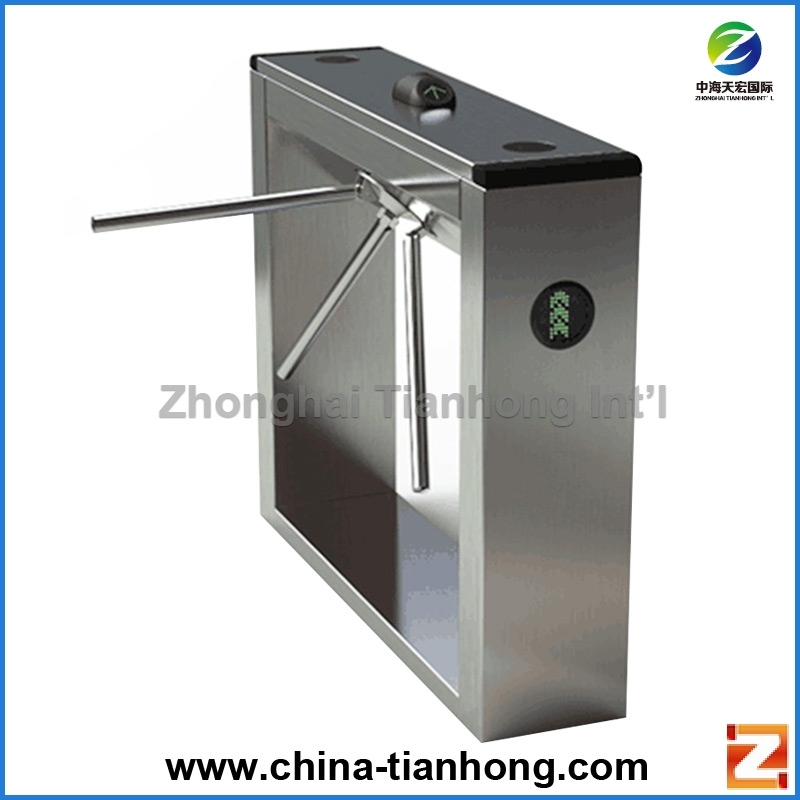

Waist Height Tripod Turnstile TH-TT201
Tripod turnstile is the most basic type of pedestrian turnstile gate, which is composed of the chassis, mechanism, and three blocking rods which stop or release by rotating 120° each time. Its components include chassis, mechanism, drive control board, motor, limit, direction indicator board, access control part, optional counter, etc. The metal rod (rod length standard 50cm) forms a spatial triangle as the blocking body (brake rod). It is made of 304 or 316 stainless steel, which is durable and not easy to deform. The blocking and releasing are achieved by rotation.
Tripod security gate can be combined with smart card, fingerprint, bar code, and other identification system equipment to form an intelligent access control system; It is combined with a computer, access control, attendance, charge management, ticket system, and other software to form an intelligent access control management system, which can realize the functions of access control, attendance, consumption, ticket sales, current restriction and so on.
Technical Parameter
| Contains | Mechanism, Housing, Driver board, Power Supply |
| Housing Material | Stainless steel or Cold-rolled steel plate |
| Drive Mode | Motor drive, 6 sets Photoelectric sensor |
| Communication Interface | One RS232 interface, two card reader signals(passive),one fire alarm interface |

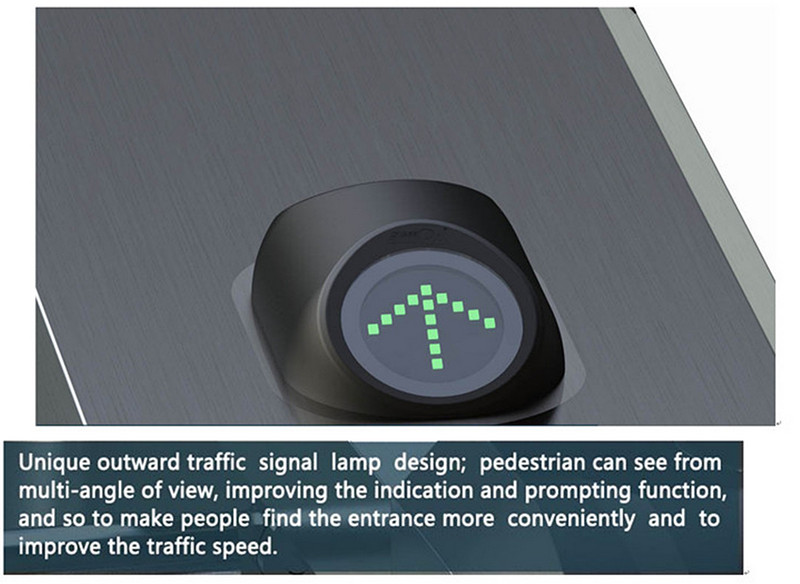

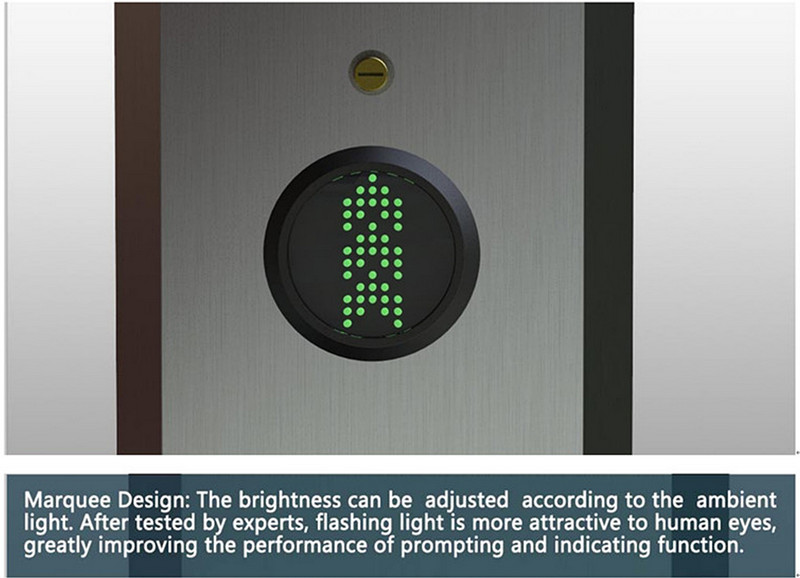

| Status Indication | Allow passing through/ Forbidden |
| Power Consumption | <60watt |

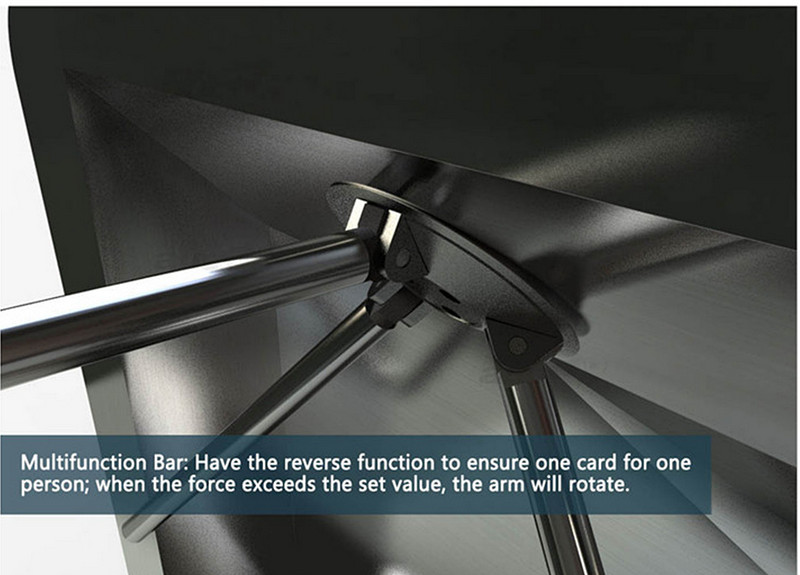

| Protection | When external force more than setting value, the tripod will be moved |
| Humidity | 5%-90% |
| Noise | ≤50dB |
| Lane Width | 550-570mm |
| Net Weight | 100KGS |
| Following Speed | >15people/minute |
| Service Life | Three millions continuous opening and closing of barrier panel |
| Access Modes | Rotating 10 degree manually, then arms turned automatically |
| Input | Input AC220V (10% more or less), 50HZ (4% more or less) |
| Maintenance Port | 2units |
| Dimension | 1200L × 1040H × 280W(mm) |
| Working Environment | 0°C-60°C |
| Working State | Single/ bi-directional |
