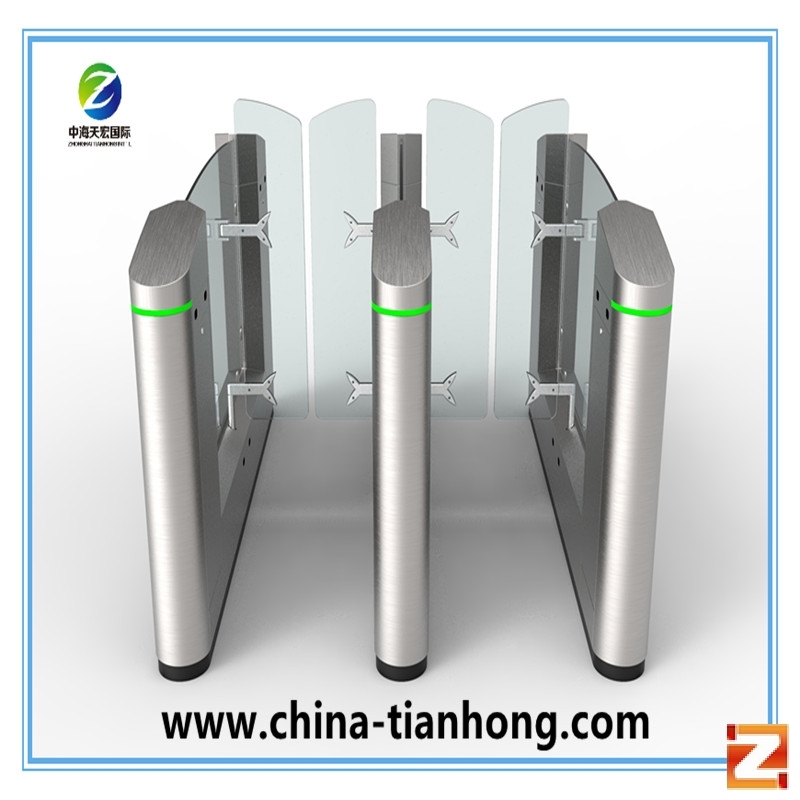

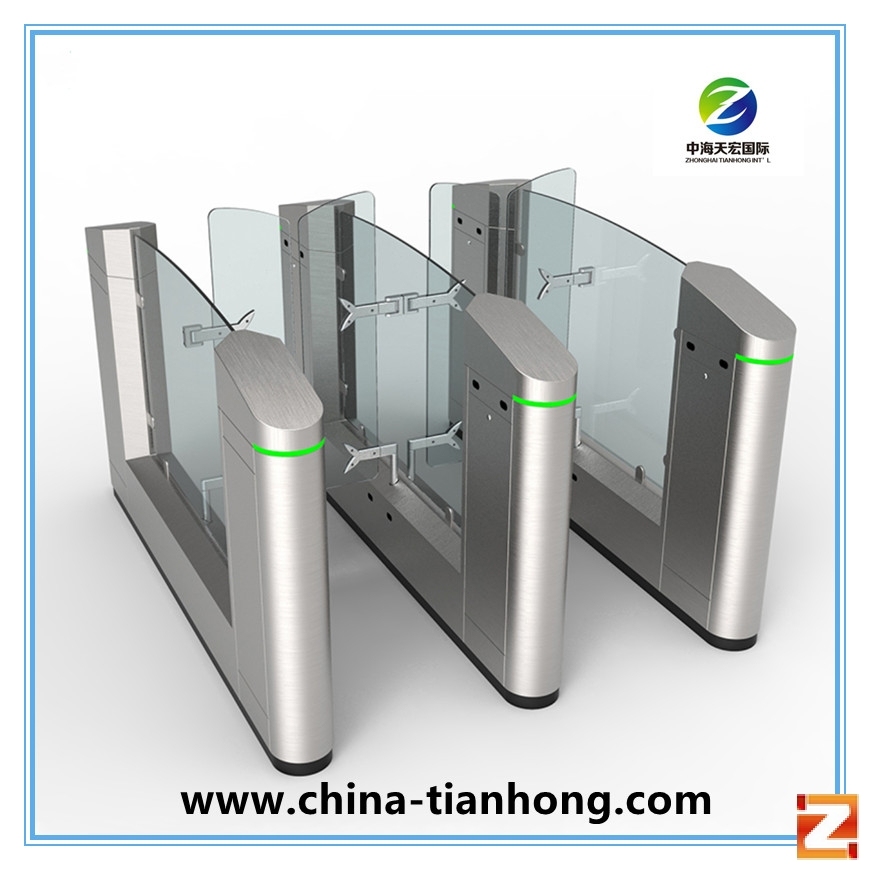

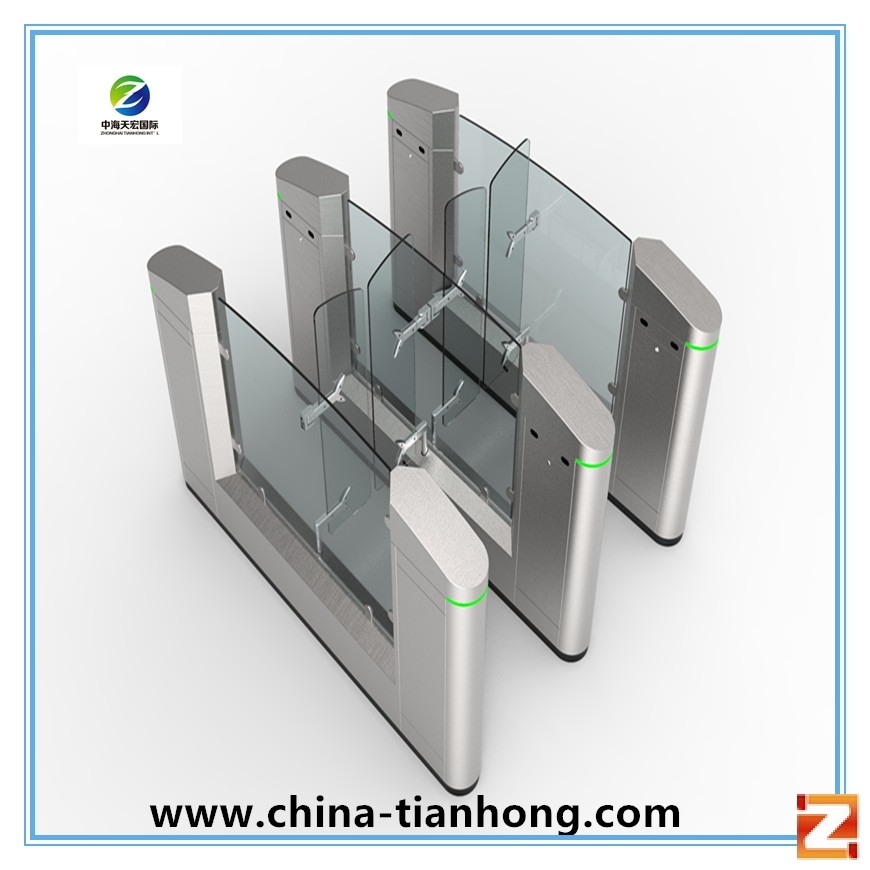

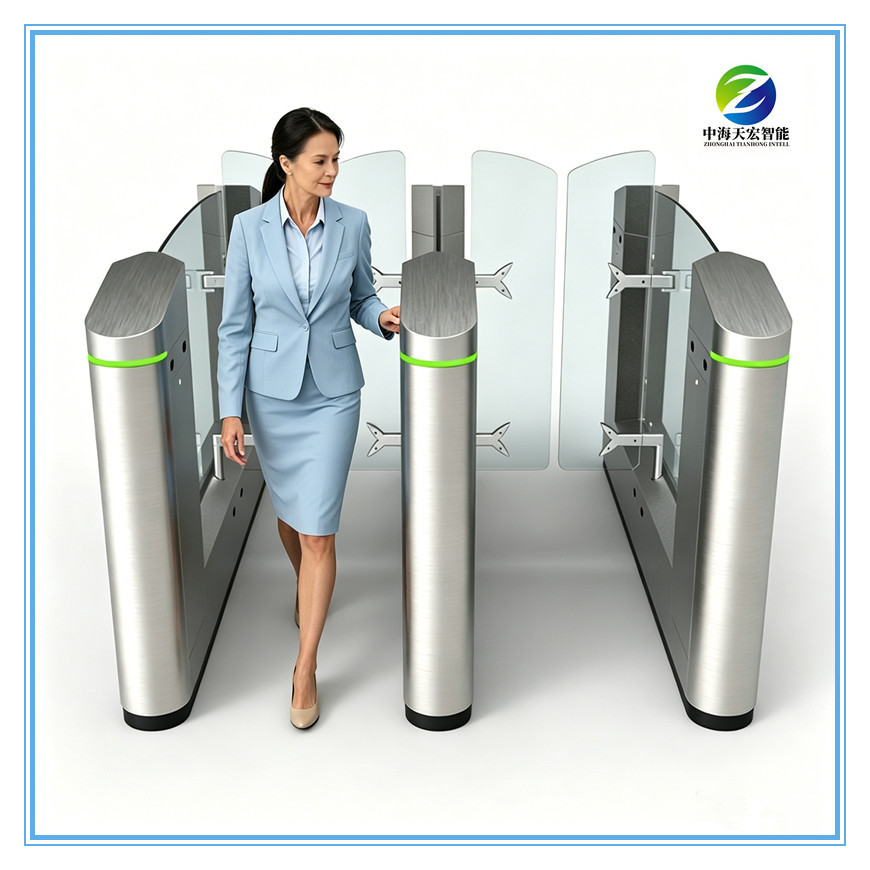

Subway Station Swing Gate Turnstile

Item No.: TH-SG406

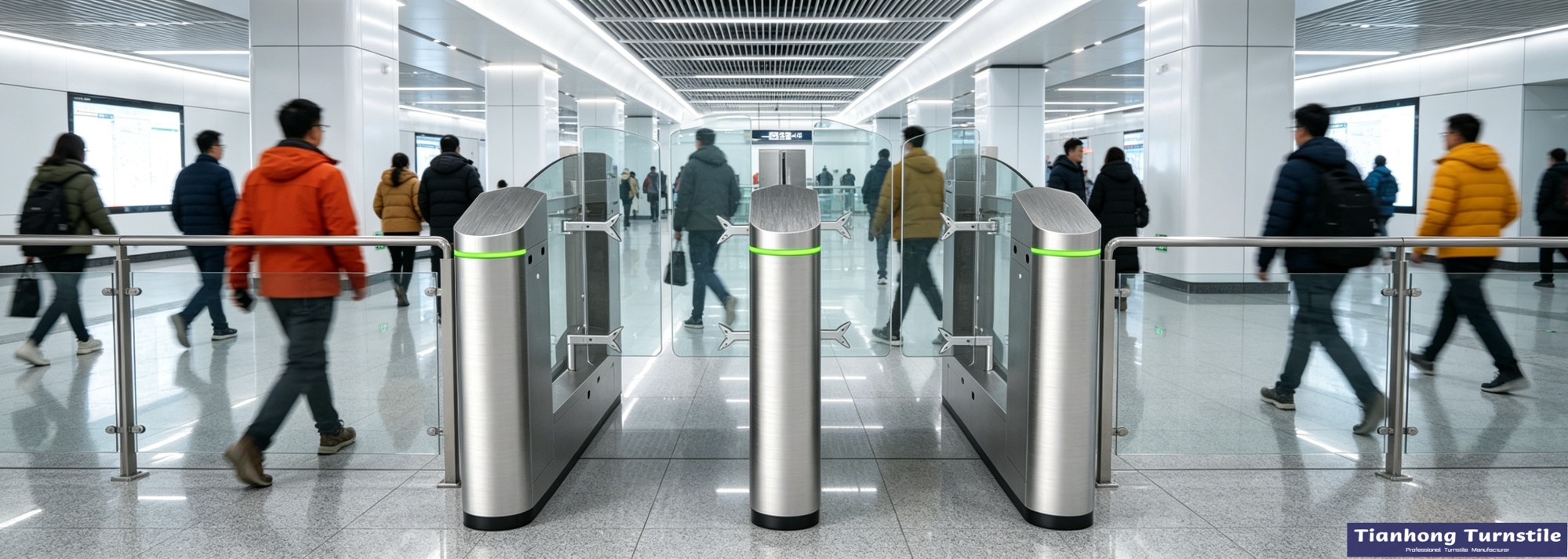

Metro Station Turnstile is a kind of pedestrian access control management turnstile gate, which is used at the entrance and exit of the metro station or airport to control passengers in and out in combination with an metro ticket checking system.

Tianhong SG406 Security Airport Subway Station Swing Gate Turnstile metro/airport turnstile provides as wide as 1100 mm lane to accommodate bicycles, wheelchairs, motorbikes, trolleys, luggage, etc. SUS 304 stainless steel turnstile waterproof outdoor swing turnstile for apartment entrance. It is mostly used at the gate of enterprise units, industrial plant areas, and high-end residential area.

Airport subway sation turnstile gate with a high traffic speed, which is usually applied in the location with high traffic flow in bi-direction running.

Our swing guardrail can be integrated with a modern intelligent management system to realize intelligent management of access control.

Product Advantages

Compact mechanical and electrical design, unique drive, and self-locking mechanism
Automatic fault detection
The input interface can be used for dry contact and switch signal connection
Adjustable automatic delay closing
Infrared photocell for safe passage
Unauthorized entry and no entry alarms
Power on and power off automatically
Free access when power off
Adjustable entry direction
Provide emergency interface
Traffic lights for passengers to enter
Product Parameters

1. Configuration: Mechanism, Housing, Control board, Power supply
2. Power Consumption:Static state: single core 60W; dynamic state: single core 160W.
3. Power Input:AC220V±10%,50HZ
4. Output:DC5V、DC12V、AC24V
5. Drive Mode:DC electric motor
6. Interface:one Rs 232 or 485 interface, two card reader signals (passive), one fire alarm interface.
7. Overall Dimension:2200L*200W*1240H (mm)
8. Following Speed:35 people/minute in normal mode, 50 people/minute in fast mode
9. Service Life: Five millions continuous rotation
10.Operation Direction:Single/bi-directional
11.Working Environment:Indoor
12.Lane Width:500mm-1100mm
13.Opening Angle:90±5°
15.Opening and Closing time:1 second
16.Net Weight: Single core 70 KGS/set; double cores 100 KGS/set
