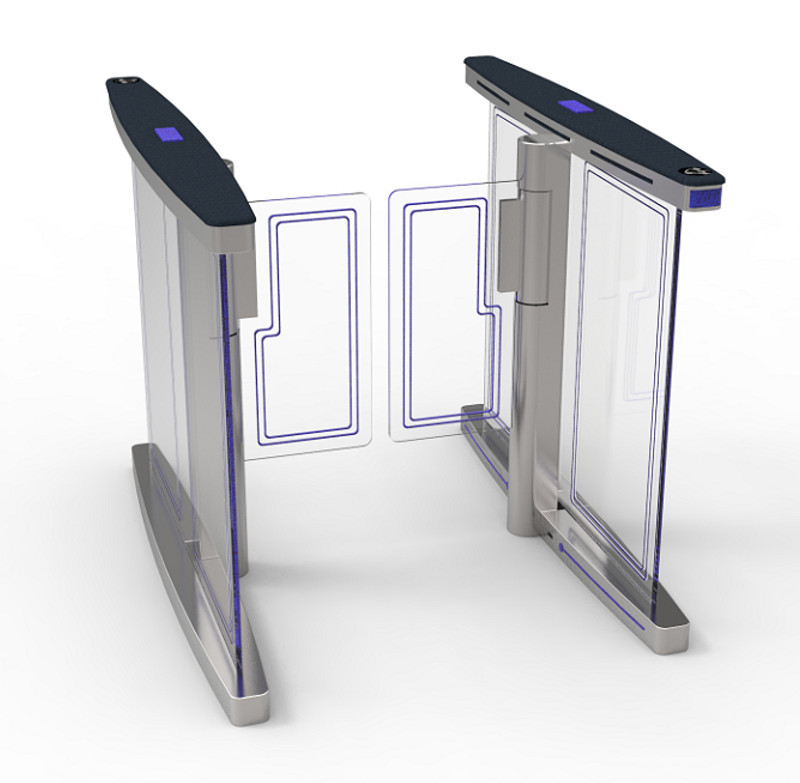

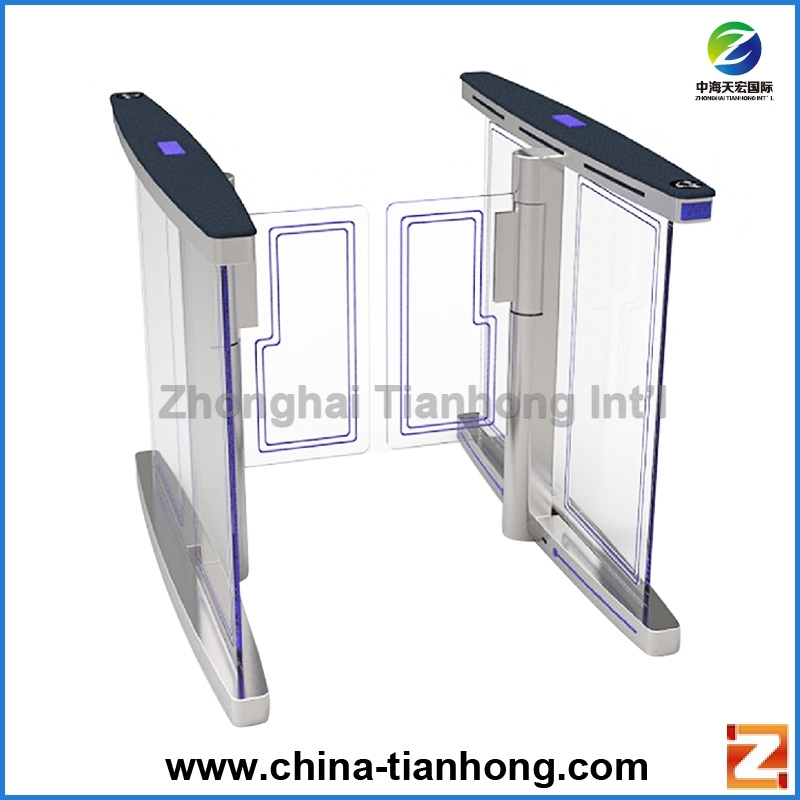

Speed Gate TH-SG328

Item No.: Best Unique Designed Speed Gate TH-SG328
Be applied to pedestrian passageway and automatic fare collection management such as government, enterprises and office building.

The speed gate turnstile TH-SG328  is a high-end intelligent swing turnstile gate product, which can fully detect the passing situation of the human body. Its body material is 304 stainless steel which is anti-rust and durable and high resistance.

The best unique designed  speed gate turnstile  comes with a standard electric interface that can easily integrate the common 3rd party access control system, such as bar-code scanner, Token coin collector, time & attendance system, card collector, biometrics  systems (fingerprint & face recognition), ESD system and fare collection system, etc. It’s one of the most common security turnstiles.

Tianhong provide both ODM & OEM services as per the customers' demands.
For product pricing, designing or any other inquiries, please feel free to contact us.

Technical Parameters

1. Size: 1500*120*980 mm (can be customized)
2. Material: 1.2mm SUS 304 Hairline 400#+Top Cover 12mm black acrylic
3. Arms material: 10mm Acrylic
4. Pass Width: standard 600mm max 1000mm(arm hollowed out)
5. Passage direction: Single directional/Bi-directional
6. Pass rate: 30-35 persons/minute
7. Operating time: 0.2 seconds
8. Power input: AC100-240V,50/60HZ
9. Input interface: RS485, Dry contact
10. Mechanism: Servo Brushless moto
