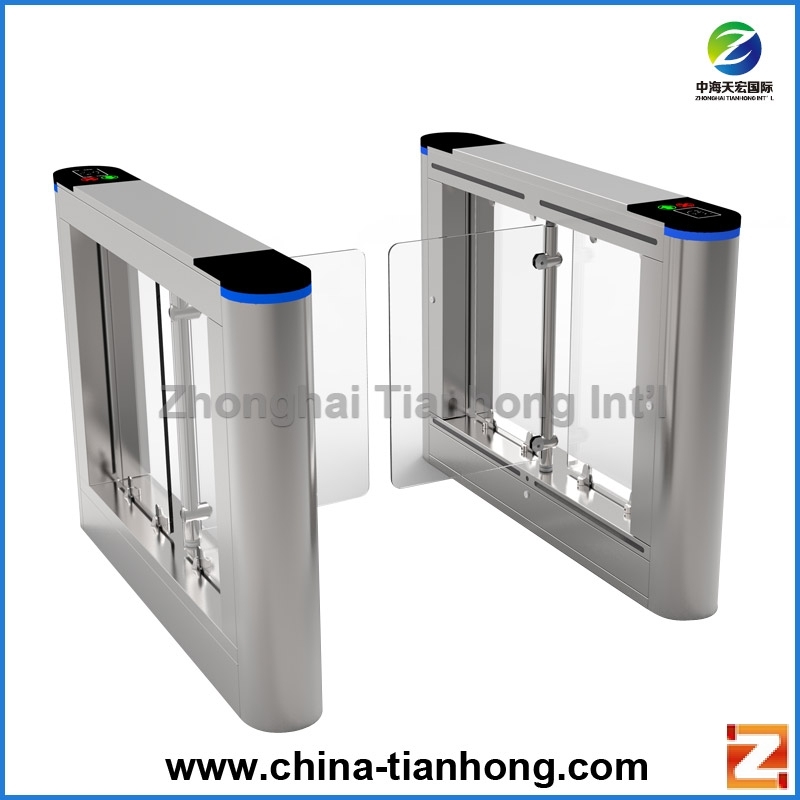

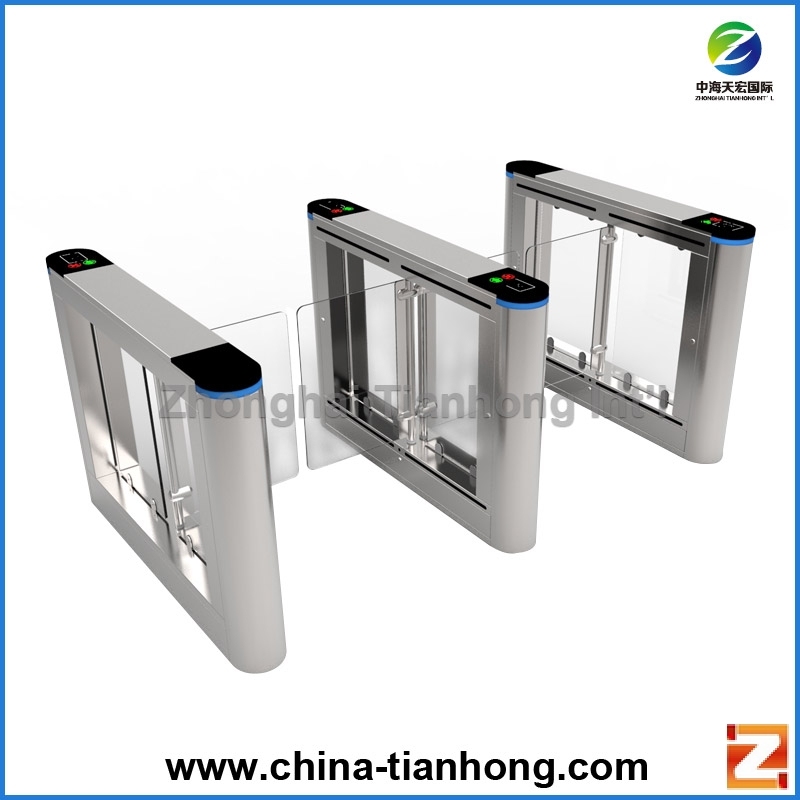

Outdoor Speed Gate TH-SG316

Item No.: TH-SG316
Outdoor Swing Gate Turnstile is a kind of pedestrian access control turnstile gate that can be used outdoors, different from an indoor turnstile, it has a waterproof and leakproof function and can be used in various harsh exterior environments.
INQUIRY
Description

Outdoor swing gate turnstile is a kind of pedestrian access control turnstile gate that can be used outdoors, different from an indoor turnstile, it has a waterproof and leakproof function and can be used in various harsh exterior environments.


Outdoor swing gate turnstile is mostly used at the gate of enterprise units, industrial plant areas, university gate  and high-end residential areas. There is semi-open air and full open air. How to ensure the normal use of the turnstile machine outdoors? The most important thing is to make the turnstile machine waterproof.

Outdoor turnstile often encounters rain. Therefore, outdoor turnstiles must have good water resistance. In other aspects, according to the environmental requirements of the installation site, the outdoor turnstile must have certain abilities of high-temperature resistance, cold resistance, sunlight interference resistance, condensation resistance, etc.


Tianhong provide both ODM & OEM services as per the customers' demands.
For product pricing, designing or any other inquiries, please feel free to contact us.


Technical Parameters


1. Configuration: Mechanism, Housing, Control board, Power supply
2. Power Consumption: Static state: single core 60W; dynamic state: single core 160W.
3. Power Input:AC220V±10%,50HZ
4. Output:DC5V、DC12V、AC24V
5. Drive Mode: DC electric motor
6. Interface: 12 dry contact
7. Overall Dimension: 1200L x 185W x 1020H (mm)
8. Following Speed: 35 people/minute in normal mode, 50 people/minute in fast mode
9. Service Life: Five millions continuous rotation
10. Operation Direction: Single/bi-directional
11. Working Environment: Indoor
12. Lane Width: 500mm-550mm
13. Opening angle:90±5°
14. Noise:≤50dB
15. Opening and Closing Time: 1 second
16. Net Weight: Single core 70 KGS/set; double cores 100 KGS/set
