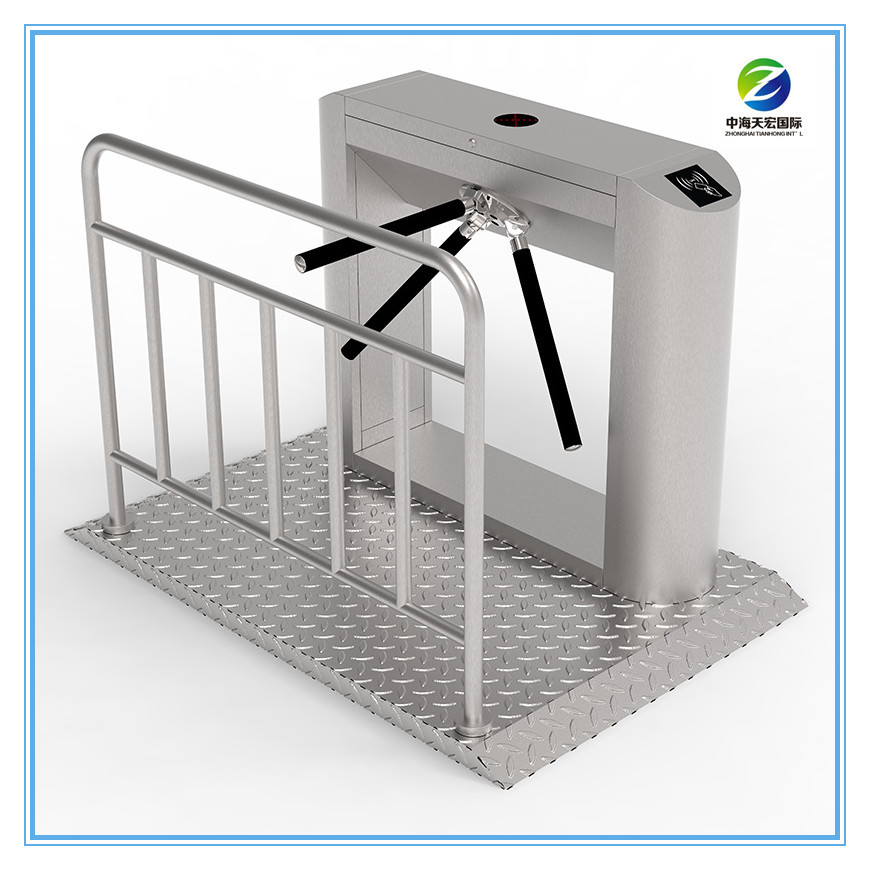

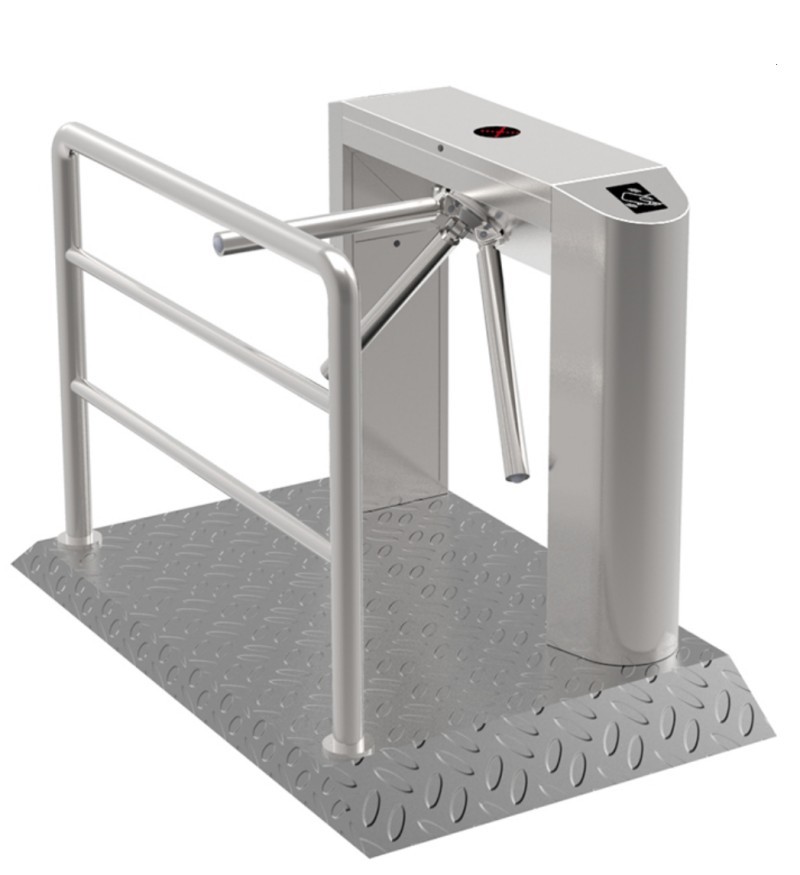

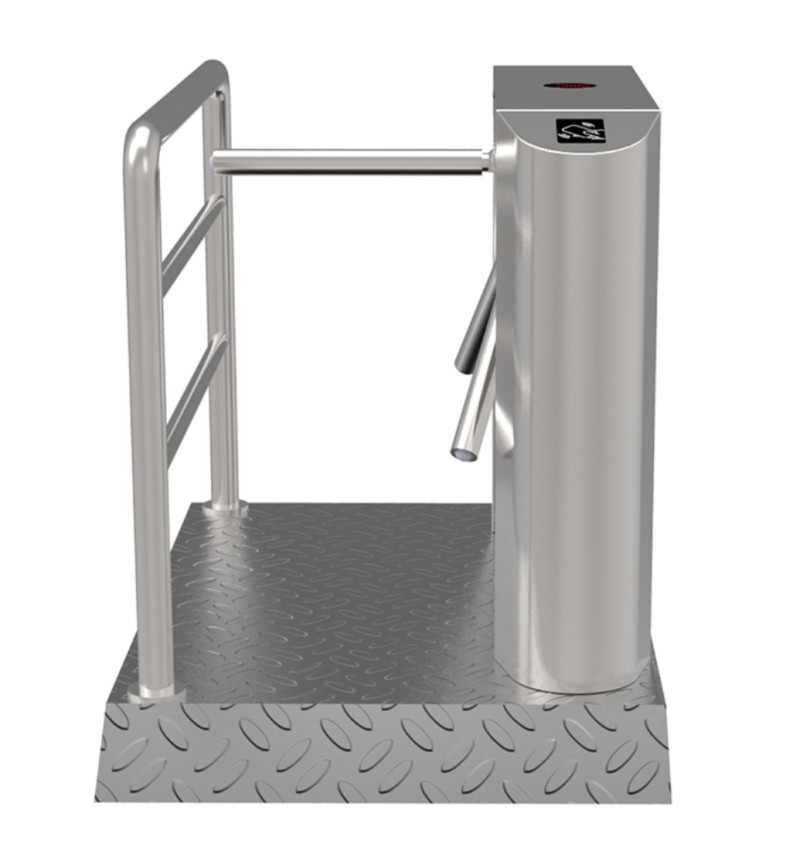

Portable Tripod Turnstile

A portable tripod turnstile is a type of physical access control system typically used to control pedestrian traffic flow in areas with tight space constraints. It is designed to provide secure and reliable access control without taking up too much space. The turnstile is made of three rotating arms that allow only one person to pass through at a time. It can be easily transported from one location to another, making it suitable for temporary or special events use. The tripod turnstile is commonly used in stadiums, trade shows, amusement parks, and other venues where there are large crowds and the need for crowd control is paramount.

The base is equipped with four wheels. The wheels can be adjusted. When the portable turnstile needs to move, the wheels can be adjusted downward to push the portable turnstile to the desired place. When it is fixed, the wheels can be pulled back, the portable turnstile can be fixed and used normally.

Below are the main advantages for the portable tripod turnstile:
1. Space-saving: The compact design of the tripod turnstile makes it ideal for areas with limited space.
2. Easy to install and transport: The tripod turnstile is easy to set up and can be transported easily from one location to another.
3. Cost-effective: Compared to other access control systems, the tripod turnstile is relatively inexpensive.
4. Robust and durable: Portable tripod turnstiles are built to withstand heavy usage and harsh weather conditions.
5. Secure: Tripod turnstiles provide a secure physical barrier that prevents unauthorized access and ensures only authorized individuals can enter.
6. Highly visible: They act as a visual deterrent and help to deter unwanted entries.
7. Low maintenance: Tripod turnstiles are low maintenance, which makes them a cost-effective solution in the long run.
8. Customizable: They can be customized to suit specific requirements, including integration with other security systems such as card readers and biometric scanners.
9. Fast and efficient: Tripod turnstiles allow fast and efficient movement of people, which reduces queuing time and improves traffic flow.
10. User-friendly: The tripod turnstile is simple to use, making

Our base plate has been tested countless times to ensure its firmness, It can bear weight beyond the scope of use.

Technical Parameters

1. Size: 480*280*980 mm (can be customized)
2. Lane width: 550 mm (can be customized)
3. Passing speed: 35 person/min
4. Power supply: 110V/220V 50/60hz
5. Weight: 40 kg
6. Gate Open Signal: Dry Contact/ Relay
7. Casing Material: 304 stainless steel
8. Reliability of the mechanism: 3 million, no-fault
9. Operation way: semi-automatic

We accept both OEM & ODM orders.
Welcome to contact us for any inquiries.
