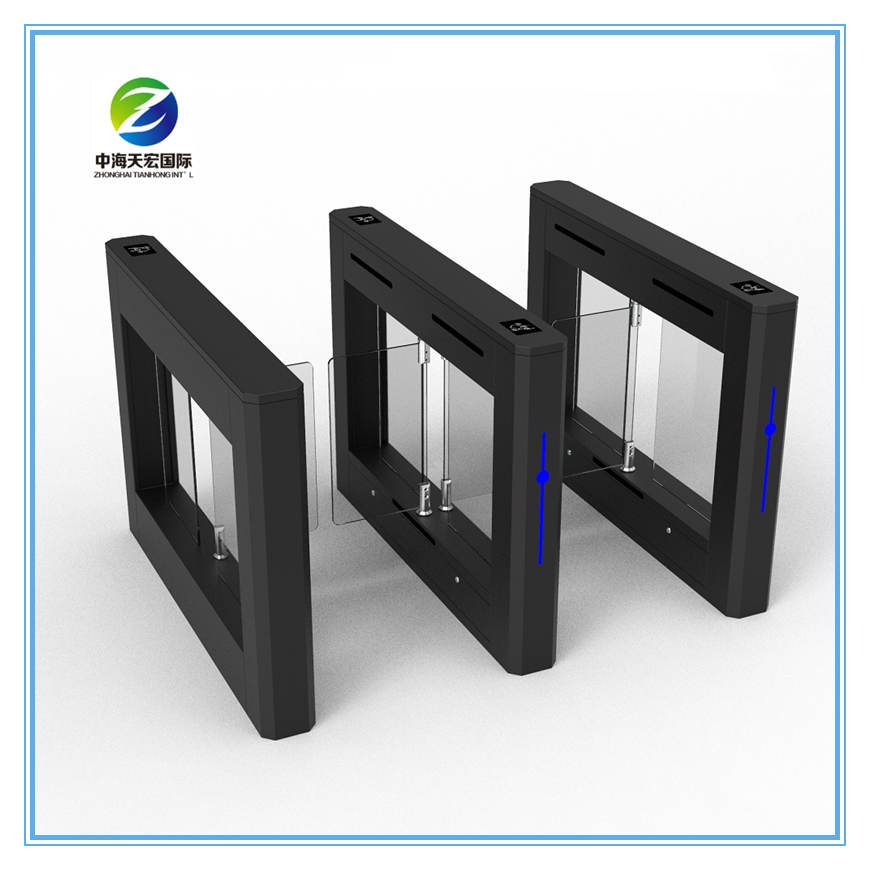

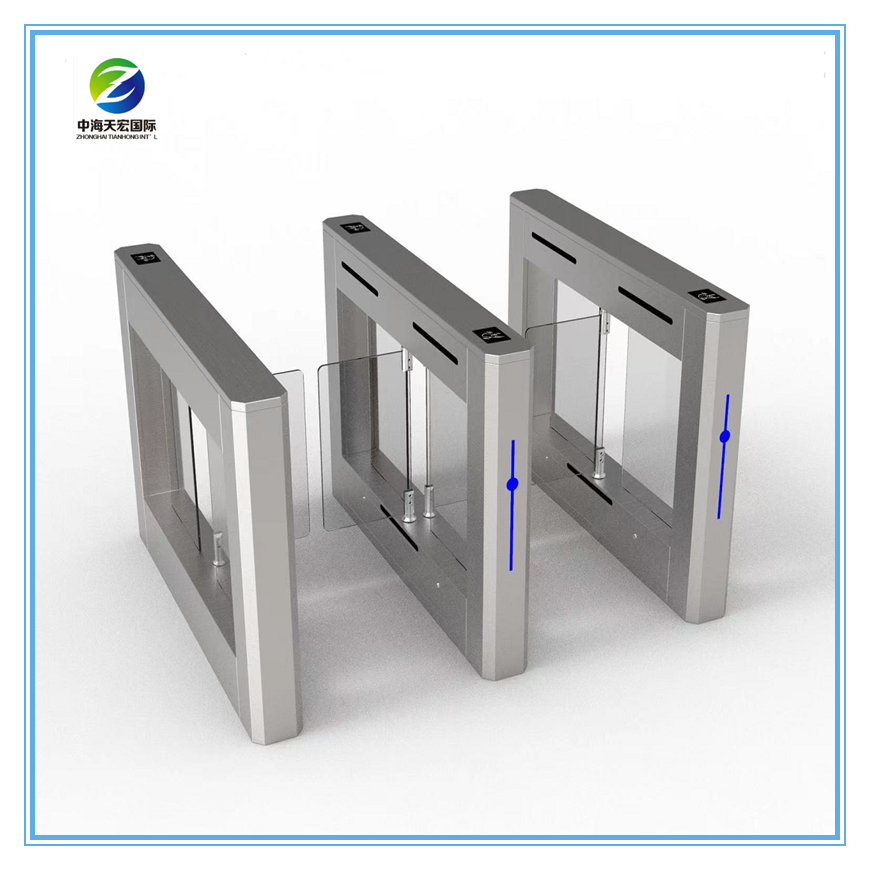

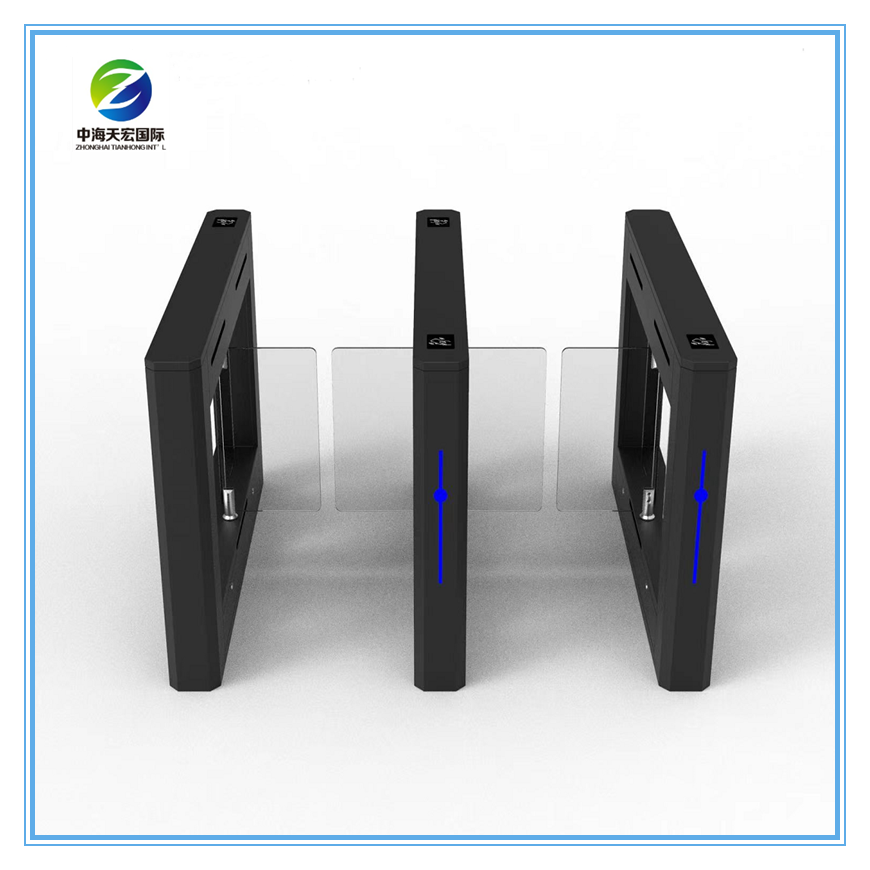

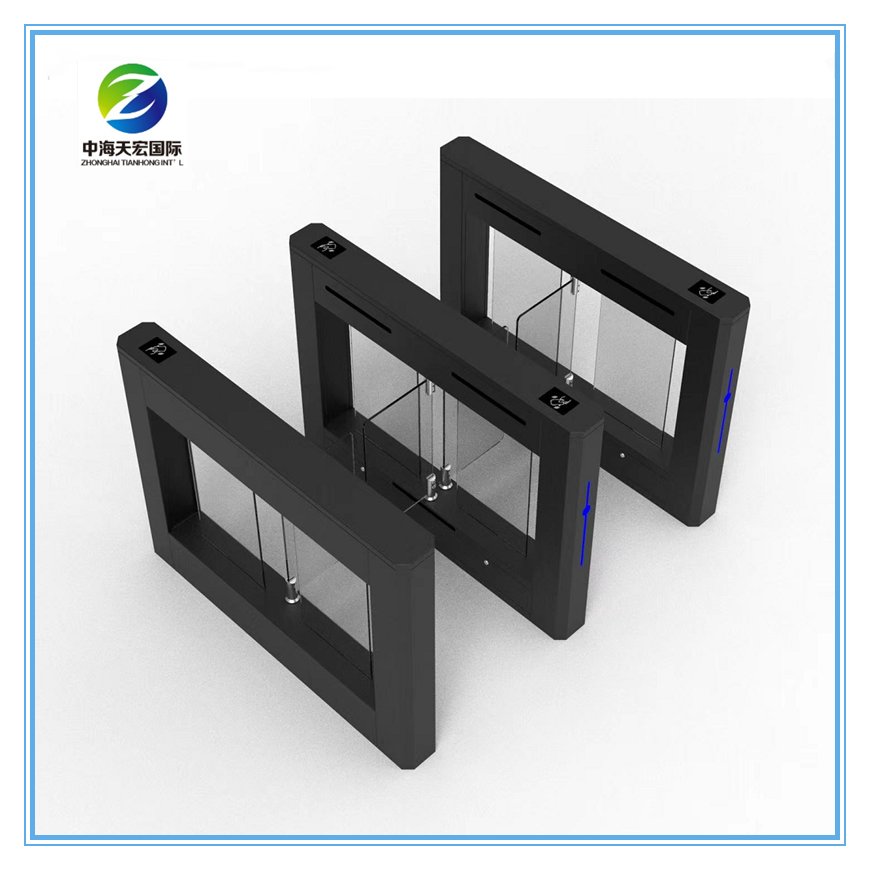

Optical Waist Swing Gate Turnstile TH-SGB418

Item No.: TH-SGB418
Optical half waist swing gate turnstile is a kind of swing barrier turnstile that is controlled by sensors, which includes the number of sensors incorporating a matrix of detection beams. Application : Community, Factory, office building, School, mall etc
This Swing Barrier Optical Swing Turnstile is a slim swing turnstile gate. The standard relay and RS485 interface makes it compatible with all access control systems, such as the RFID card system, Face Recognition temperature checker system, Coin operated system, Bar code System, and ESD Tester Access Control. Tianhong Swing Gate Turnstile is a compact and cost-effective entrance solution.

The sensor commonly used by the optical swing turnstile is an opposite photoelectric sensor, which can more accurately sense the human body. An optical swing turnstile gate is equipped with multiple groups of radiation sensors to realize the in and out sensing of people. It is mainly at the gate entrance, the sector of the wing rod, and the gate exit. For accurate sensing, some optical turnstile gates install sensors at different heights of each part.

All models of swing optical turnstile, and speed gates can be customized according to your actual requirements. Some models of swing turnstile gates and sliding gate turnstile can be 900mm passage width also. Access Control Pedestrian Security Turnstile Gates Glass Optical Turnstiles Speed Gate.

Tianhong can provide OEM and ODM services. We also provide biometric devices, such as IC/ID card readers, fingerprint scanners, QR code scanners, face recognition cameras, and so on. If you need to integrate these devices on this turnstile gate or have any questions, please feel free to contact us.

Technical Parameters

1. Size: 1400*160*1000 mm (can be customized)
2. Lane Width: 600 mm (Standard)  900 mm( Handicapped)
3. Arm Material: 10mm Acrylic
4. Passing speed: 35 person/min
5. Power supply: 110 V/220 V 50/60 Hz
6. Mechanism: DC Brushless motor mechanism
7. Driving Motor: 24V
8. Gate Open Signal: Dry Contact/ Relay
9. Weight: 70 kg/pcs
10. With 5pairs of sensors
11. Casing Material: 304 stainless steel and black acrylic
12.LED light on arms & LED sideboard is optional
