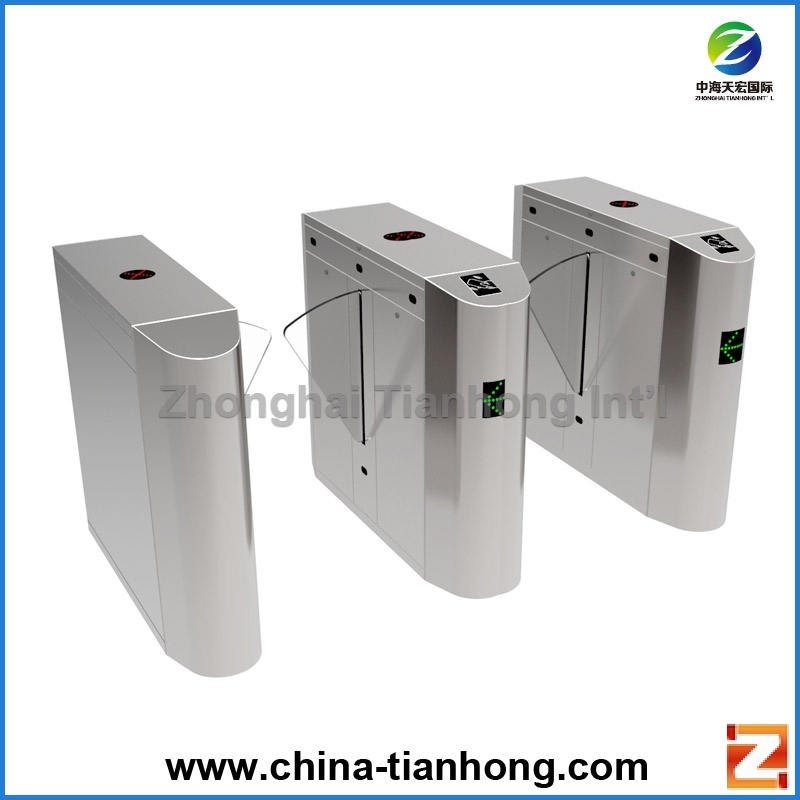

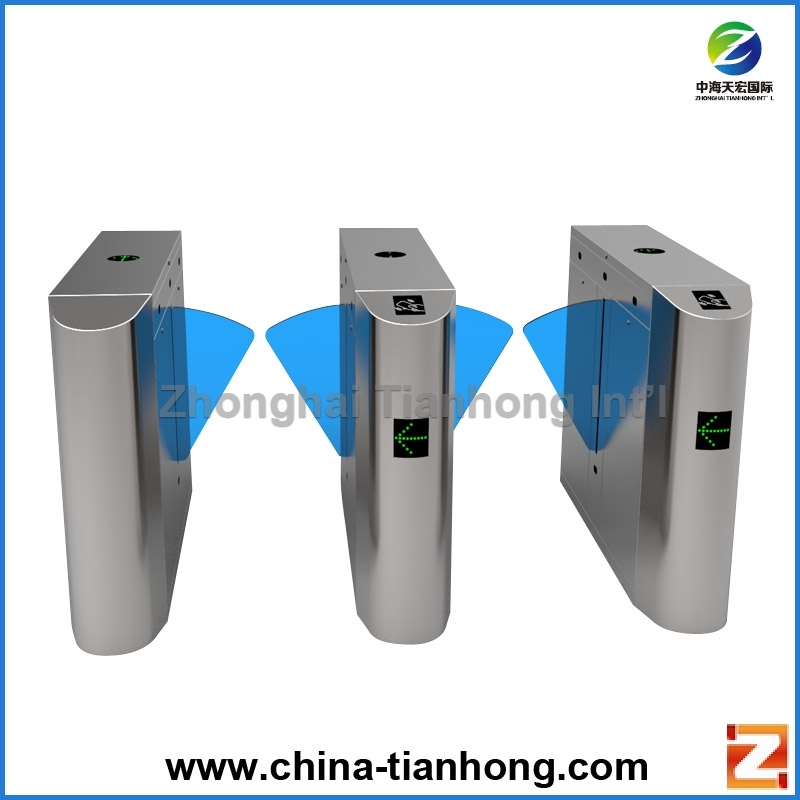

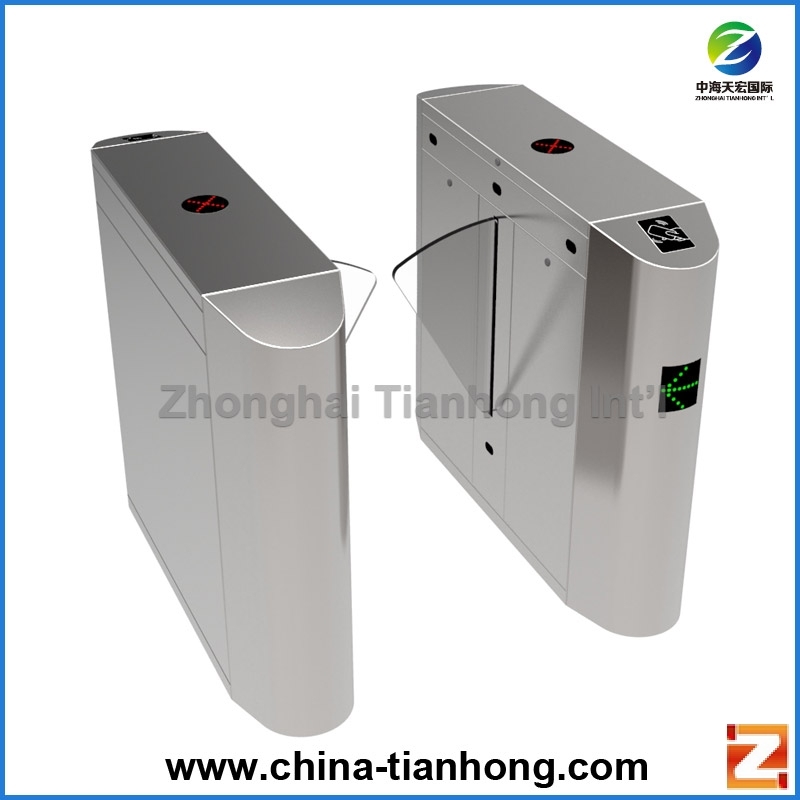

High Cost Valued Flap Barrier Gate TH-FGB218

Item No.: TH-FGB218
Applied to pedestrian passageway and automatic ticket sale and check management such as for government, enterprises and institutions, libraries, offices, office buildings, factories, stations, scenic spot and leisure entertainment, etc.

TIANHONG FLAP BARRIER GATE offers a reliable and efficient method to ensure only authorized users are allowed access to each area of a building. A direction indicator showed that pedestrian access to the current status of, and guide pedestrian correct and smooth passage.

The flap barrier gate is high integrated for every access control system, such as facial recognition with temperature check devices, fingerprints, QR readers, RFID systems, etc.
Tianhong offers the best turnstile gates price the world markert with the best quality.


Technical Parameters
1. Configuration: Mechanism, Housing, Control board, Power supply
2. Driving Mode: Motor drive
3. Housing Material: Stainless steel or cold rolled steel plate
4. Access Modes: Locked; Remote control by computer; Authorized
5. Passing Speed: 30 people /minute in normal close mode; 60 people /minute in normal open mode
6. Lane width:≤550-600mm
7. Operating Mode: Single-directional or Bi-directional
8. Temperature: -10 ℃ - 60 ℃
9. Communication Interface: One RS232 electric standard interface; Two card reader signal (passive); One fire alarm signal
10. Humidity: 5%~90%
11. Power: Input AC220±10%V 50HZ; output DC24V、DC12V、DC5V
12. Working Environment: Indoor, outdoor(need rain-proof frame)
13. Maintenance Port: 2 units
14. Service Life: Three millions continuous opening and closing of barrier panel
15. Overall Dimensions: 1200L x 280W x 990H
