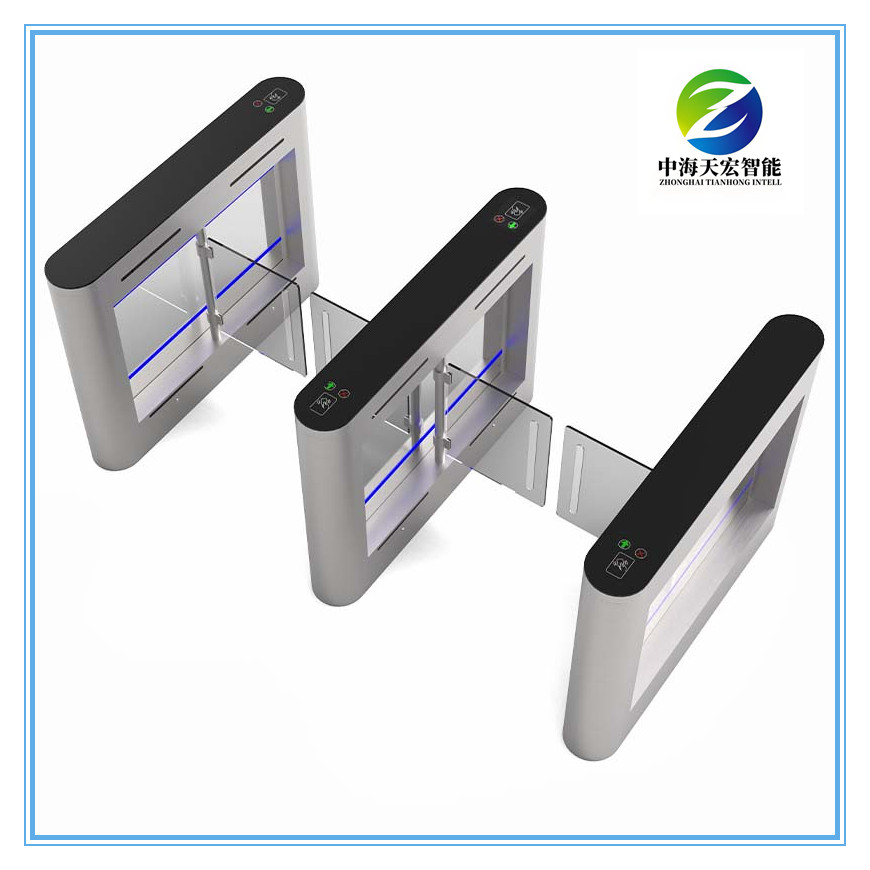

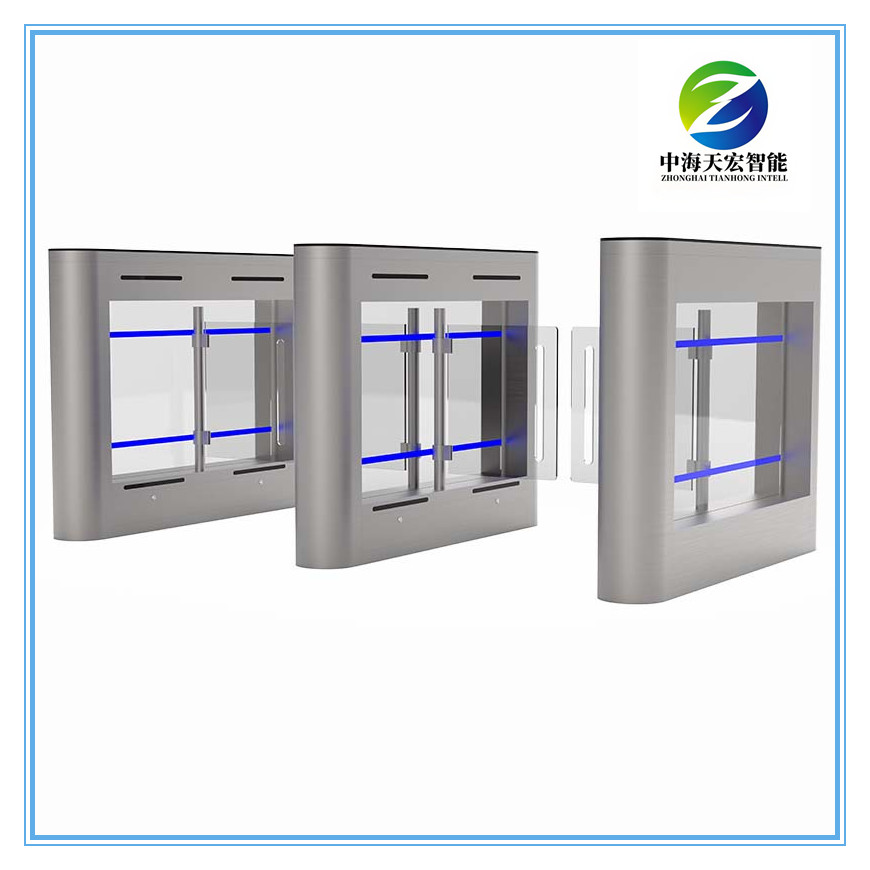

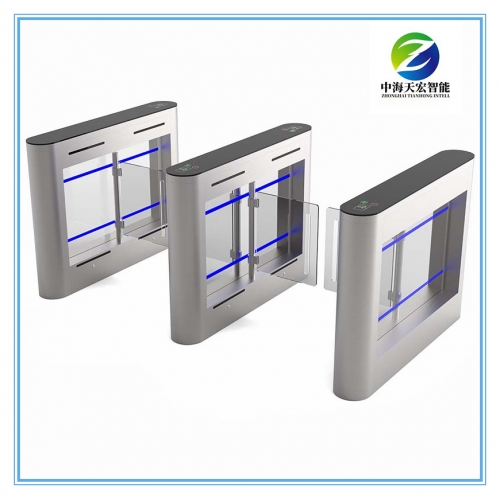

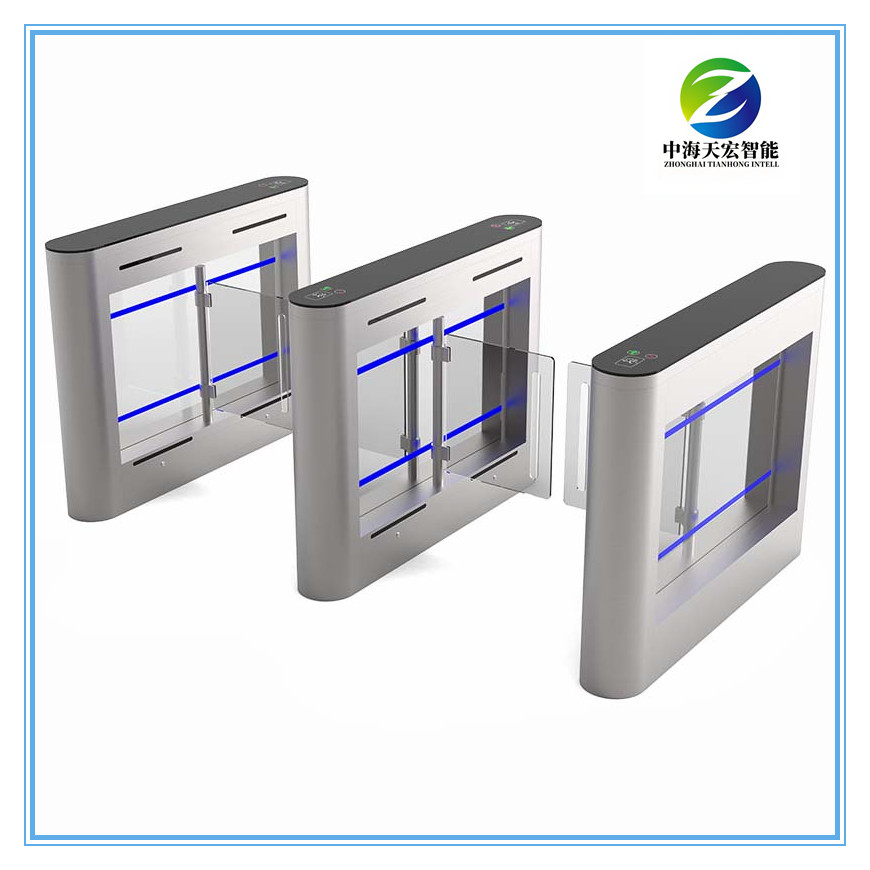

2026 China Made Electrical Optical Swing Gate Turnstile
The 2026 China Made Electrical Optical Swing Gate Turnstile SG368, manufactured by Zhonghai Tianhong, is a cutting-edge access control solution designed for high-traffic environments. Featuring advanced optical sensors, it ensures smooth, contactless operation with precise detection for enhanced security and efficiency. Built with a robust stainless steel frame, the SG368 offers durability and weather resistance, making it ideal for both indoor and outdoor installations.
Its high-speed swing mechanism allows quick, silent operation, reducing wait times while maintaining strict access control. The turnstile supports integration with RFID, facial recognition, QR codes, and biometric systems, offering flexible authentication options. Anti-tailgating and anti-reverse functions prevent unauthorized entry, while its sleek, modern design complements commercial, transportation, and institutional settings.
With IP65 waterproofing, low power consumption, and remote management capabilities, the SG368 ensures reliability and ease of maintenance. Zhonghai Tianhong’s turnstile combines innovation, security, and durability, making it a top choice for airports, metro stations, office buildings, and secure facilities in 2025 and beyond.
Main Parameters
1. Size: 1310*200*1000 mm (can be customized)
2. Lane Width: 600 mm (Standard) 900 mm (Handicapped)
3. Arm Material: 10mm Acrylic
4. Passing speed: 35 person/min
5. Power supply: 110V/220V 50/60hz
6. Mechanism: DC Brushless motor mechanism
7. Driving Motor: 24V
8. Gate Open Signal: Dry Contact/ Relay
9. Weight: 70 kg/pcs
10. With 5pairs of sensors
11. Casing Material: 304 stainless steel and black acrylic
12. Reliability of the mechanism: 3 million-5 million, no-fault
13. Anti-hit mechanism, automatically reset when encountering force impact
14. LED light on arms is optional
