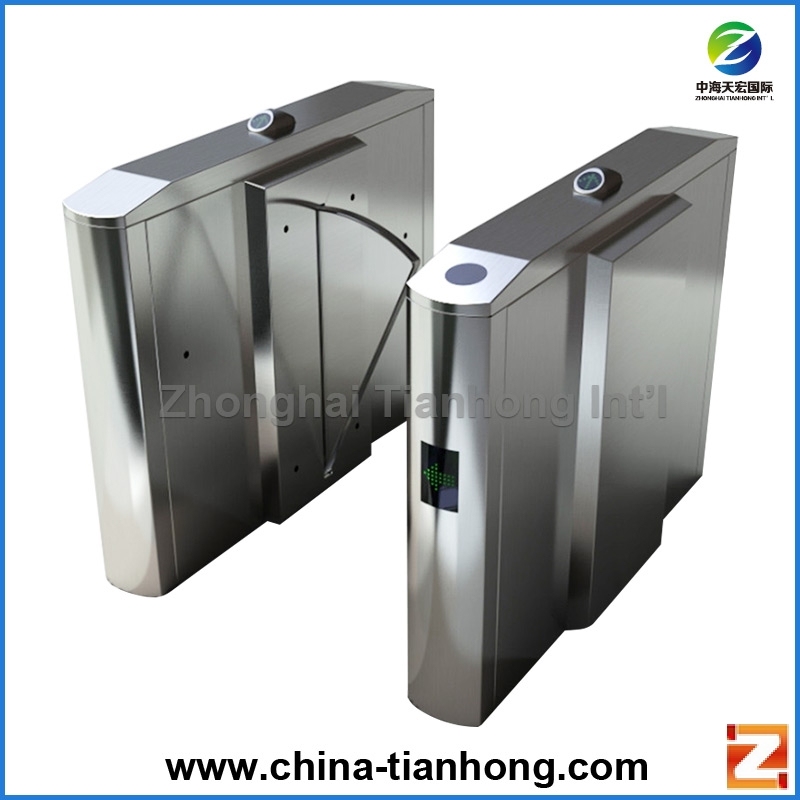

Flap Barrier Gate TH-FGB202

Item No.: TH-FGB202
Flap Barrier Gate System is a fast acting entry control barrie
system; bi-directional, with flaps that open into its pedestal.
Its solid defence structure is built for high frequency usage and heavy traffic flow.


Product Description

1. Configuration: Mechanism, Stainless steel housing, Control board, Power supply
2. Drive mode: Motor drive
3. Access Modes: Locked; Remote control by computer; Authorized
4. Passing Speed: 30 people /minute in normal close mode; 60 people /minute in normal open mode

5. Noise:≤50DB
6. Lane width:≤550-600mm
7. Working state: Single or bi-direction
8. Status indicator: Allow passing through / Forbidden
9. Power: Input AC220±10%V 50HZ; output DC24V、DC12V、DC5V

10. Power Consumption: Static state: single core 30W; Dynamic state: single core 80W
11. Communication Interface: One Rs 232 interface, two card reader signals (Passive), one fire alarm interface.
12. Working Environment: Indoor, outdoor with rain frame
13. Temperature:-10
°C – 60 °C
14. Humidity:5%~90%
15. Maintenance Port: 2 units

16. Life span: More than three million continuously opening and closing
17. Overall Dimension: 1300L x 280W x 990H
18. Net Weight: Single core: 80kg (exclude control device); Double cores: 100KG (exclude control device)

19. IP grade: Ip42
