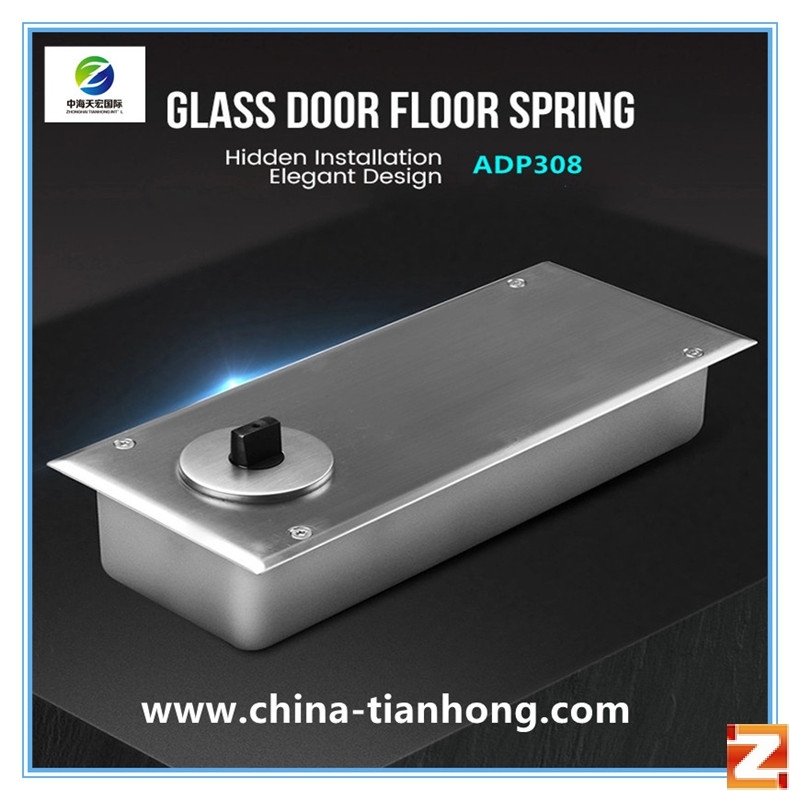

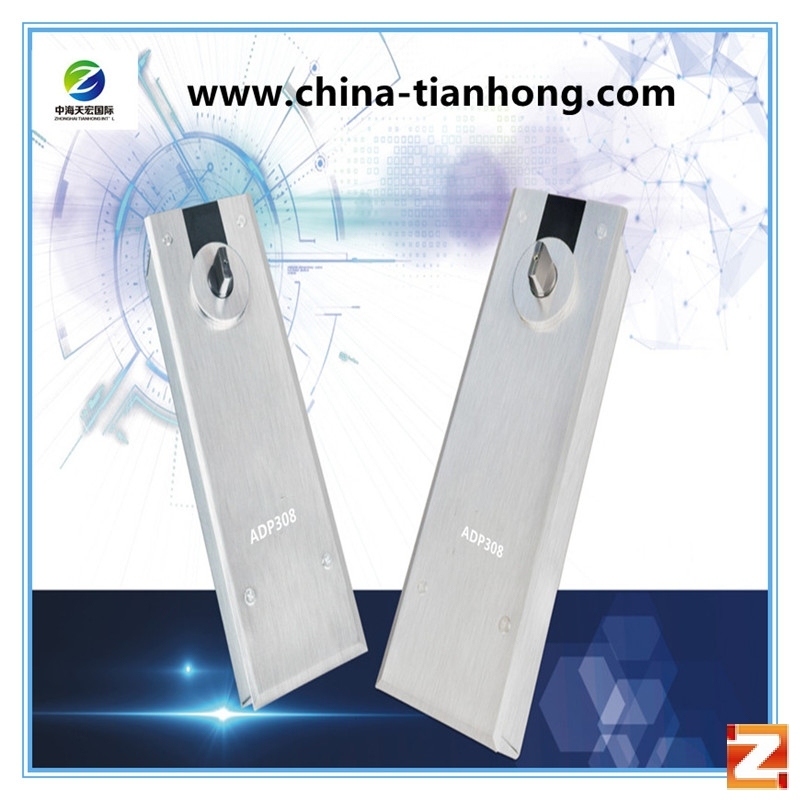

Automatic Door Operator

Item No.: TH-ADP308
Adp308 is a specially designed automatic door operator for the extra heavy width door. It can operate the door width of 1.5m with weight maximum of 180Kg.

It is widely used at the entrance door for the shops, offices, pub coffee bars, meeting rooms, r
Technical data
Max. door weight: 180kg
Max. door width: 1500mm
Max. torque: 165Nm
Unit weight: 5.5kg

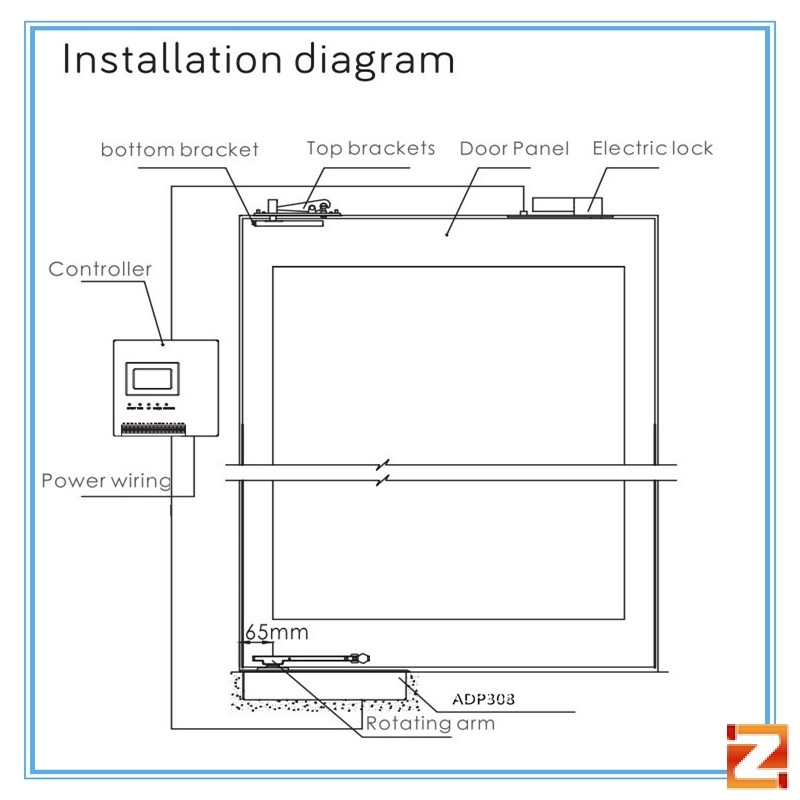

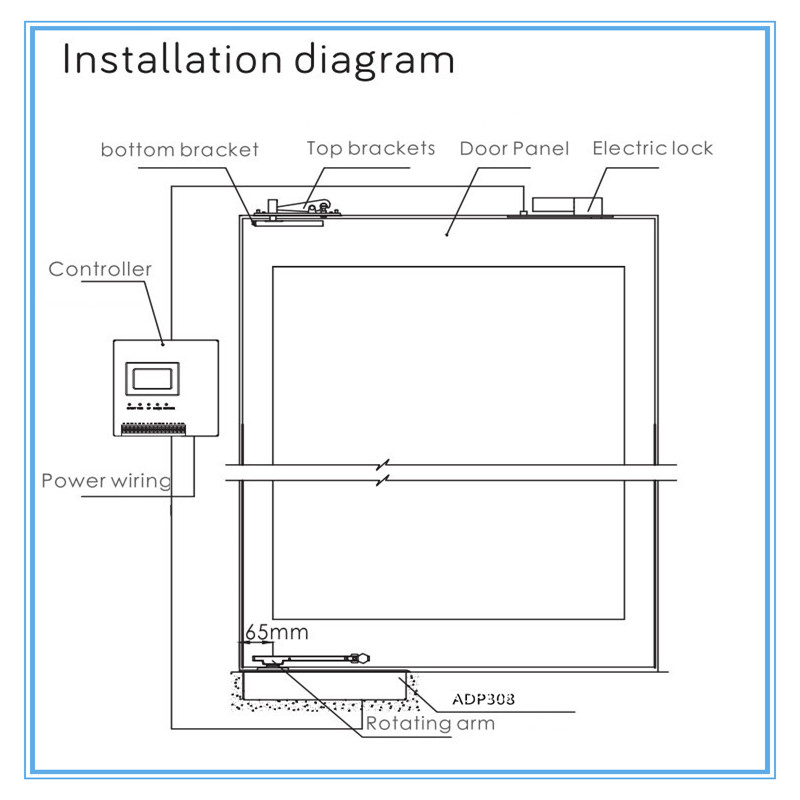

Installation method: ground embedding
Running noise: <60dB
Electric lock output: DC12V NO/NC
Opening /Closing time: 6-12S
Opening range: 86°- 95°
Power supply: AC220V±10% , 50/60Hz
Rated power: 55W
Standby power: <2W
Working temperature: -20 ~ +50°C
Protection level: IP68
Unit size: 335X140X70 (mm)
Control box size: 245X175X54(mm)
